164A186 Series
Manufacturer: Amphenol CONEC
Beta
⌘K

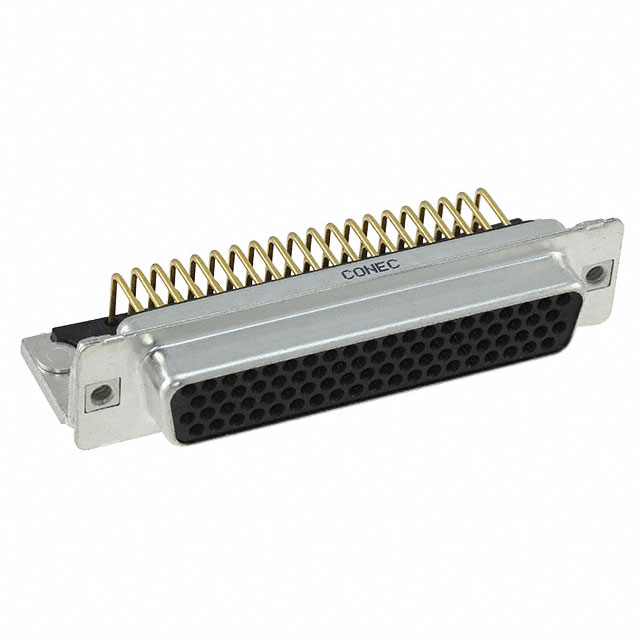

CONN D-SUB HD RCPT 78P R/A SLDR
| Part | Mounting Type | Flange Feature | Material Flammability Rating | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Type | Connector Style | Connector Type | Backset Spacing | Backset Spacing | Voltage Rating | Dielectric Material | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Board Edge Right Angle Through Hole | 4-40 | UL94 V-0 | Solder | Gold | -55 °C | 125 °C | Black | 8 çin | 0.203 çm | 3 A | Signal | D-Sub High Density | Receptacle Female Sockets | 0.314 in | 7.98 mm | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 78 | Copper Alloy |
Amphenol CONEC | Through Hole Right Angle | Housing/Shell (M3) | UL94 V-0 | Solder | Gold | -55 °C | 125 °C | Black | 3 A | Signal | D-Sub High Density | Receptacle Female Sockets | 0.314 in | 7.98 mm | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 78 | Copper Alloy | ||
 Amphenol CONEC | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | UL94 V-0 | Solder | Gold | -55 °C | 125 °C | Black | 8 çin | 0.203 çm | 3 A | Signal | D-Sub High Density | Receptacle Female Sockets | 0.314 in | 7.98 mm | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 78 | Copper Alloy |
Amphenol CONEC | Board Edge Right Angle Through Hole | M3 | UL94 V-0 | Solder | Gold | -55 °C | 125 °C | Black | 8 çin | 0.203 çm | 3 A | Signal | D-Sub High Density | Receptacle Female Sockets | 0.314 in | 7.98 mm | 60 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 78 | Copper Alloy |
