CSTNE Series

Catalog

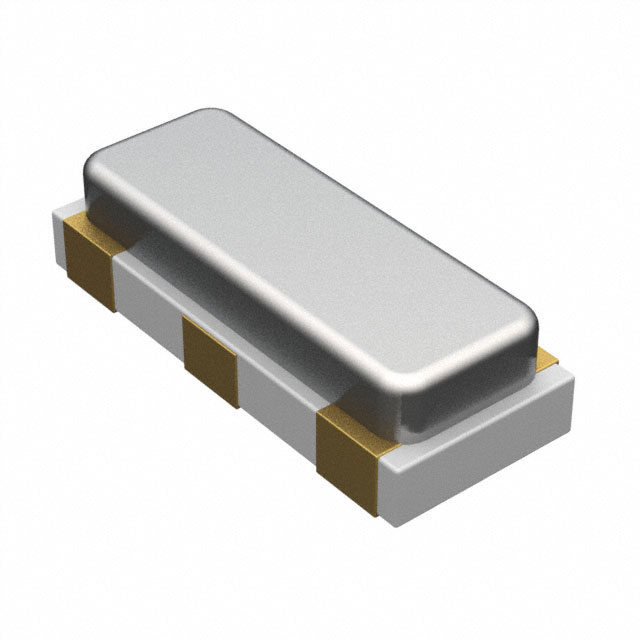

3.2X1.3MM 16.934MHZ CERAMIC RESO

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Tolerance	Capacitance	Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency	Impedance	Height	Height	Mounting Type	Features	Frequency Stability
Murata Electronics CSTNE16M9V53L00ZR0	125 °C	-40 C	0.5 %	15 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	16.934 MHz	40 Ohms	1 mm	0.039 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE16M0V510000R0	85 °C	-40 C	0.5 %	5 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	16 MHz		0.8 mm	0.032 in	Surface Mount	Built in Capacitor	0.3 %
Murata Electronics CSTNE16M3V53L000R0	85 °C	-40 C	0.5 %	15 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	16.384 MHz	40 Ohms	1 mm	0.039 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE10M0G52A000R0	125 °C	-40 C	0.5 %	10 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	10 MHz		0.8 mm	0.032 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE12M0G520000R0	85 °C	-40 C	0.5 %	10 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	12 MHz		0.8 mm	0.032 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE20M0V53L00ZR0	125 °C	-40 C	0.5 %	15 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	20 MHz	40 Ohms	1 mm	0.039 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE14M3V53L000R0	85 °C	-40 C	0.5 %	15 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	14.318 MHz	40 Ohms	1 mm	0.039 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE19M2V53L000R0	85 °C	-40 C	0.5 %	15 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	19.2 MHz	40 Ohms	1 mm	0.039 in	Surface Mount	Built in Capacitor
Murata Electronics CSTNE8M38G520000R0	85 °C	-40 C	0.5 %	10 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	8.388 MHz	40 Ohms	0.8 mm	0.031 "	Surface Mount	Built in Capacitor
Murata Electronics CSTNE16M5V53L000R0	85 °C	-40 C	0.5 %	15 pF	Ceramic	3-SMD Non-Standard	0.126 "	1.3 mm	0.051 in	3.2 mm	16.5 MHz	40 Ohms	1 mm	0.039 in	Surface Mount	Built in Capacitor
