1986258 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

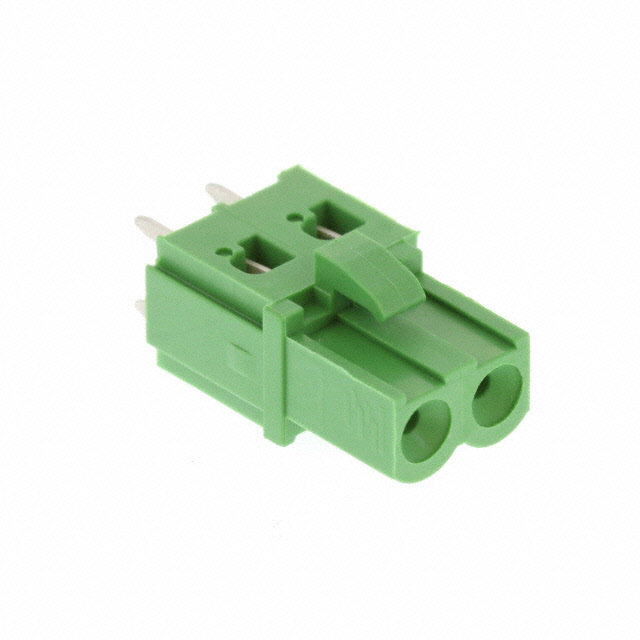

VERTICAL BDMT PLUG 2 POSN, 5.08M
| Part | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Pitch [x] | Pitch [x] | Termination Style | Contact Tail Length | Contact Tail Length | Number of Positions | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Contact Mating Finish | Features | Contact Material | Mounting Type | Color | Insulation Height | Insulation Height | Voltage - UL | Header Orientation | Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | -40 °C | 110 °C | 1 | 0.2 in | 5.08 mm | Solder | 3.5 mm | 0.138 in | 2 | 30 AWG | 12 AWG | Tin | Retention Latches | Bronze | Through Hole | Green | 0.744 in | 18.9 mm | 300 V | Vertical | Header Female Sockets | UL94 V-0 |
