CH-V09-301 Series

Catalog

BUZZER PIEZO 220V 35.81MM PNL MT

Part	Frequency	Ingress Protection	Driver Circuitry	Input Type	Operating Mode	Mounting Type	Technology	Port Location	Termination	Termination	Termination	Voltage - Rated	Current - Supply	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Approval Agency	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Height - Seated (Max) [Max]

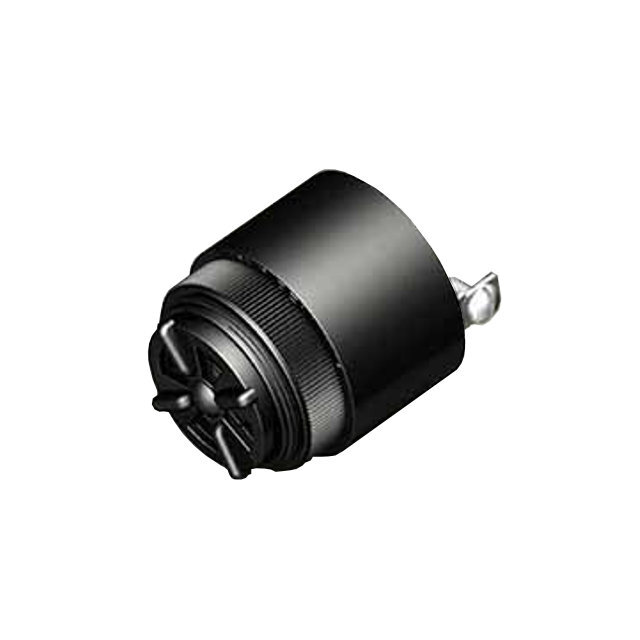

Floyd Bell Inc CH-V09-301-S(F)	2.9 kHz	IP68 - Dust Tight Waterproof	Indicator Internally Driven	AC	Chime	Panel Mount	Piezo	Top	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	220 V	40 mA	1.41 in	35.81 mm	1.48 in	37.59 mm	UL UR	93 dB
Floyd Bell Inc CH-V09-301-Q(M)	2.9 kHz	IP68 - Dust Tight Waterproof	Indicator Internally Driven	AC	Chime	Panel Mount	Piezo	Top	0.25 "	Quick Connect Tab	6.35 mm	220 V	40 mA		1.409 in	1.48 in	37.59 mm	UL UR	93 dB	35.8 mm
Floyd Bell Inc CH-V09-301-S(M)	2.9 kHz	IP68 - Dust Tight Waterproof	Indicator Internally Driven	AC	Chime	Panel Mount	Piezo	Top	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	220 V	40 mA		1.409 in	1.48 in	37.59 mm	UL UR	93 dB	35.8 mm
Floyd Bell Inc CH-V09-301-Q(F)	2.9 kHz	IP68 - Dust Tight Waterproof	Indicator Internally Driven	AC	Chime	Panel Mount	Piezo	Top	0.25 "	Quick Connect Tab	6.35 mm	220 V	40 mA	1.41 in	35.81 mm	1.48 in	37.59 mm	UL UR	93 dB

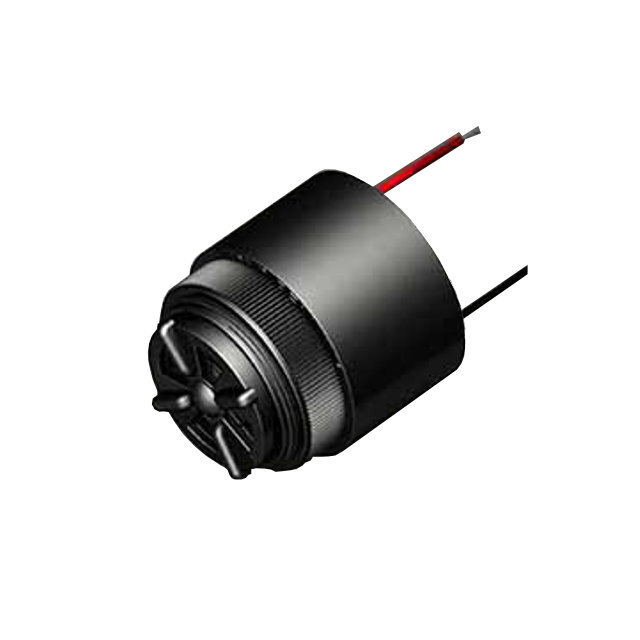

Floyd Bell Inc CH-V09-301-W(M)	2.9 kHz			AC	Chime	Panel Mount	Piezo	Top		Wire Leads		220 V	40 mA	1.41 in	35.81 mm		38.86 mm		93 dB		1.53 in
Floyd Bell Inc CH-V09-301-W(F)	2.9 kHz			AC	Chime	Panel Mount	Piezo	Top		Wire Leads		220 V	40 mA	1.41 in	35.81 mm		38.86 mm		93 dB		1.53 in
