2314869 Series

Catalog

5P,2MM,BB,REC,SRVT,2.0,0.38AU,TB

Part	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Shape	Connector Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Features	Mounting Type	Voltage Rating	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Number of Positions Loaded

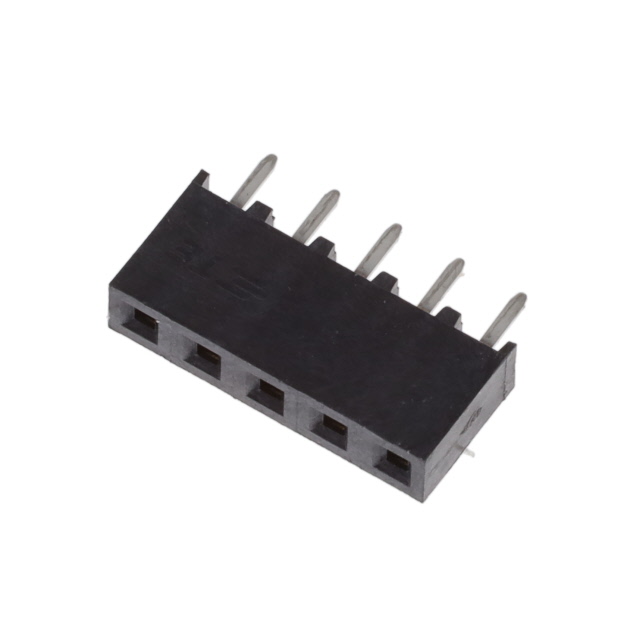

TE Connectivity Raychem Cable Protection 2314869-5	Solder	0.177 in	4.5 mm	15 µin	0.38 µm	Liquid Crystal Polymer (LCP)	2 A	0.079 "	2 mm	Black	Square	Receptacle	1	125 °C	-40 °C	Phosphor Bronze	3 µm	118.1 µin	Female Socket	Tin	0.079 in	2 mm	Pick and Place	Through Hole	125 VDC	Gold	UL94 V-0	Push-Pull	All
