MAX20472 Series

Catalog

IC REG BOOST 12TDFN

Part	Frequency - Switching	Supplier Device Package	Function	Output Configuration	Topology	Voltage - Input (Min) [Min]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Package / Case	Mounting Type	Voltage - Input (Max)	Voltage - Output (Min/Fixed)	Output Type	Outputs and Type	Outputs and Type	Voltage - Output	Regulator Topology	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Utilized IC / Part	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX20472DATCC/V+T	2.2 MHz	12-TDFN (3x3)	Step-Up	Positive	Boost	3 V	1	-40 °C	125 °C	1 A 500 mA	12-WFDFN Exposed Pad	Surface Mount	4 V
Analog Devices Inc./Maxim Integrated MAX20472ATCE/V+T	2.2 MHz	12-TDFN (3x3)	Step-Up	Positive	Boost	3 V	1	-40 °C	125 °C	1 A 500 mA	12-WFDFN Exposed Pad	Surface Mount	4 V	5 V	1.81 mOhm
Analog Devices Inc./Maxim Integrated MAX20472ATCE/V+	2.2 MHz	12-TDFN (3x3)	Step-Up	Positive	Boost	3 V	1	-40 °C	125 °C	1 A 500 mA	12-WFDFN Exposed Pad	Surface Mount	4 V	5 V	1.81 mOhm
Analog Devices Inc./Maxim Integrated MAX20472CATCA/V+	2.2 MHz	12-TDFN (3x3)	Step-Up	Positive	Boost	3 V	1	-40 °C	125 °C	1 A 500 mA	12-WFDFN Exposed Pad	Surface Mount	4 V
Analog Devices Inc./Maxim Integrated MAX20472BATCC/V+T	2 MHz	12-TDFN (3x3)	Step-Up	Positive	Boost	3 V	1	-40 °C	125 °C	1 A 500 mA	12-WFDFN Exposed Pad	Surface Mount	4 V	3.85 V	1.81 mOhm

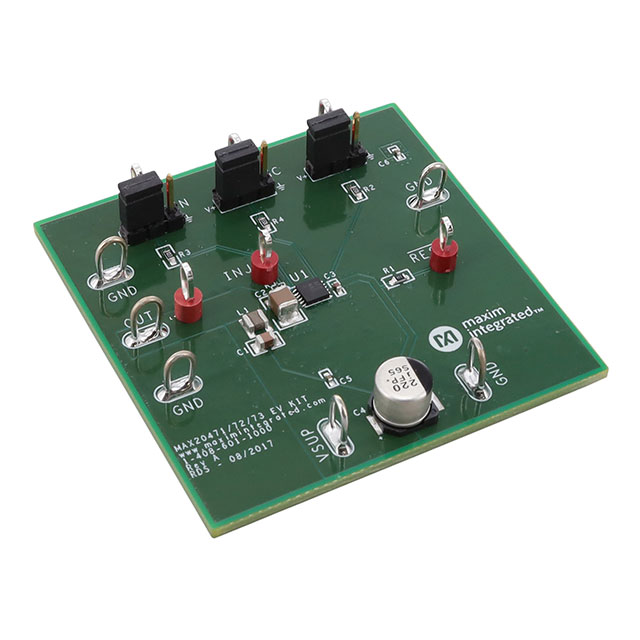

Analog Devices Inc./Maxim Integrated MAX20472EVKIT#	2.2 MHz									500 mA						Non-Isolated	1	3.8 V 5.25 V	Boost	Fully Populated	3 V	4 V	DC/DC Step Up	MAX20472	Board(s)
