1557 Series

Catalog

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, WHITE, PURPLE, 16 AWG, 1.32 MM², 100 FT

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Length [x]	Length [x]	Qualification	Wire Gauge	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length	Length
ALPHA WIRE 1557 WV005	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned	100 ft	30.5 m	MIL-W-76B Type MW	16 AWG	1 kV	White Violet Stripe	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1557 WH005	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned	100 ft	30.5 m	MIL-W-76B Type MW	16 AWG	1 kV	White	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1557 OR001	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned			MIL-W-76B Type MW	16 AWG	1 kV	Orange	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft

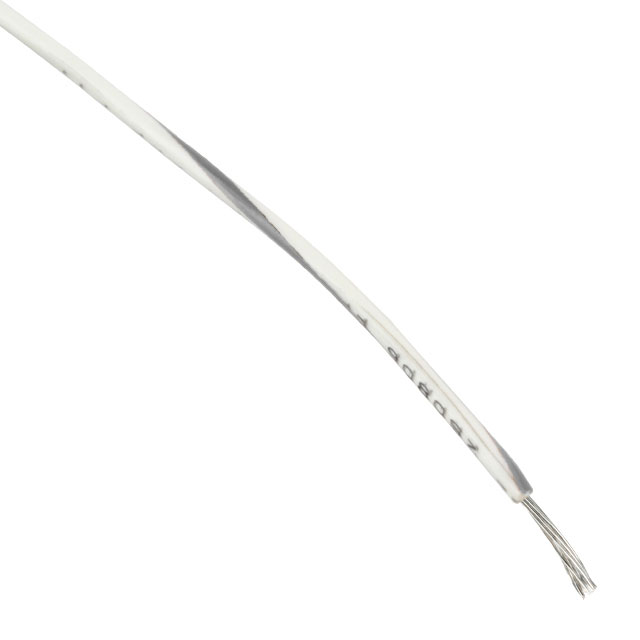

ALPHA WIRE 1557 WS005	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned	100 ft	30.5 m	MIL-W-76B Type MW	16 AWG	1 kV	White Gray Stripe	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)

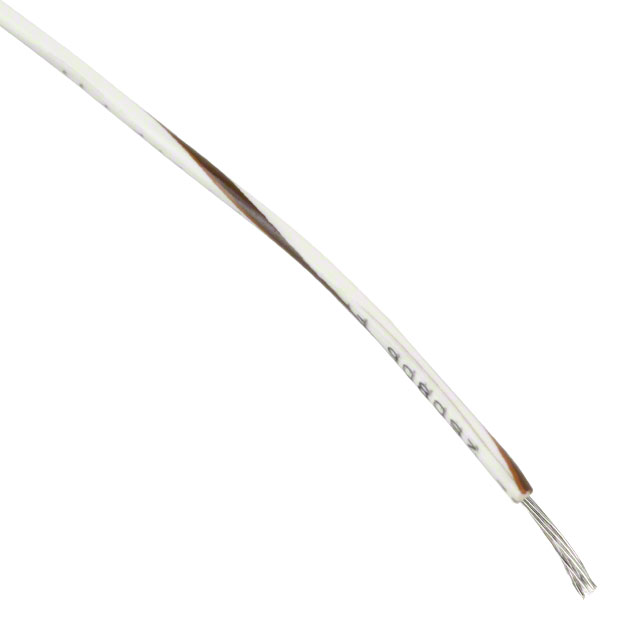

ALPHA WIRE 1557 WN001	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned			MIL-W-76B Type MW	16 AWG	1 kV	White Brown Stripe	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
ALPHA WIRE 1557 YL001	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned			MIL-W-76B Type MW	16 AWG	1 kV	Yellow	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
ALPHA WIRE 1557 SL005	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned	100 ft	30.5 m	MIL-W-76B Type MW	16 AWG	1 kV	Slate	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1557 WS001	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned			MIL-W-76B Type MW	16 AWG	1 kV	White Gray Stripe	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft

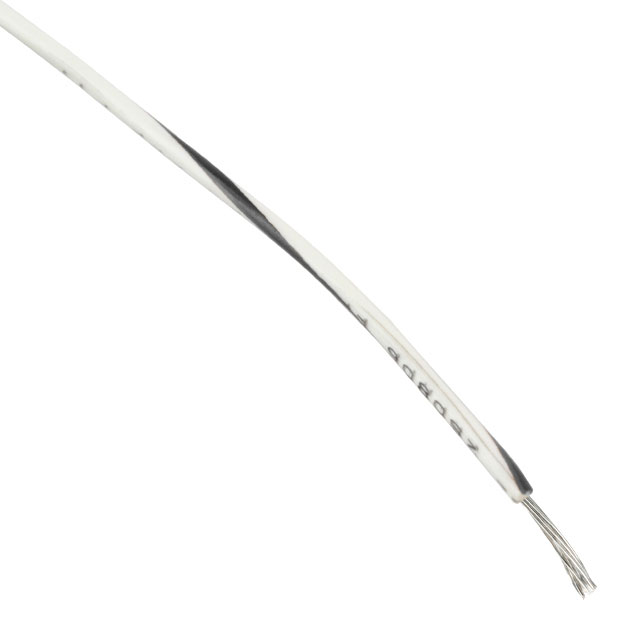

ALPHA WIRE 1557 WB001	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned			MIL-W-76B Type MW	16 AWG	1 kV	Black Stripe White	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
ALPHA WIRE 1557 WV001	0.41 mm	0.016 in	80 °C	-40 C	Copper Tinned			MIL-W-76B Type MW	16 AWG	1 kV	White Violet Stripe	0.092 "	2.34 mm	Hook-Up	30 AWG	26	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft
