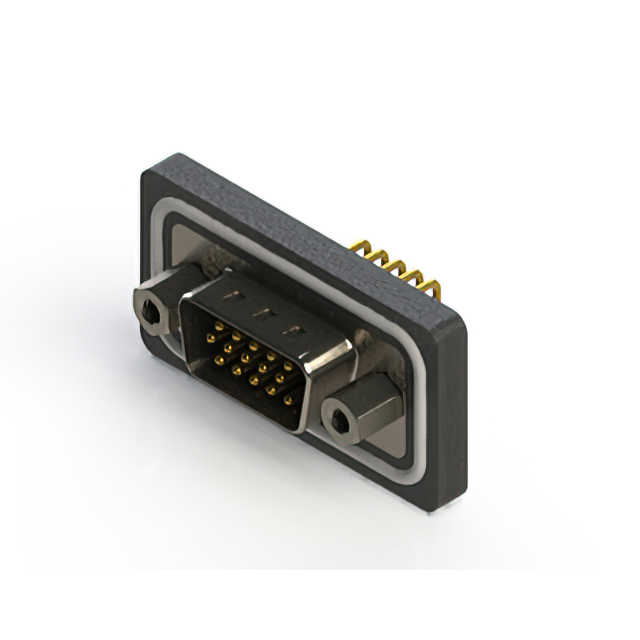

633-W15 Series
Manufacturer: EDAC Inc.
Beta
⌘K
633W (WATERPROOF) SERIES RIGHT A
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Color | Shell Material, Finish | Ingress Protection | Contact Type | Number of Positions | Number of Rows [custom] | Features | Connector Style | Mounting Type | Connector Type | Material Flammability Rating | Flange Feature | Termination | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Copper Alloy | Black | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Signal | 15 | 3 | Grounding Indents Shielded | D-Sub High Density | Right Angle Through Hole | Plug Male Pins | UL94 V-0 | 4-40 Mating Side Female Screwlock | Solder | 3 A | 0.38 µm | 15 µin | (DE E) High Density | 1 | Gold |
