QC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 8 POS 3.81MM PITCH PLUG 22-20 AWG IDC

Part	Housing Material	Insulation Height	Insulation Height	Material Flammability Rating	Features	Number of Positions	Termination Style	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Pitch	Pitch	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Mounting Type	Contact Mating Finish	Current - IEC	Color	Current - UL	Plug Wire Entry	Positions Per Level	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Insulation Height [custom]	Insulation Height [custom]
Phoenix Contact 1897607	Polyamide (PA) Nylon	0.508 in	12.9 mm	UL94 V-0	Mating Flange	8	IDC	400 V	0.34 mm²	0.5 mm²	300 V	3.81 mm	0.15 in	Plug Female Sockets	24 AWG	20 AWG	1	Free Hanging (In-Line)	Tin	6 A	Green	6 A	180 °	8
Phoenix Contact 1718180	Polyamide (PA) Nylon	0.772 in	19.6 mm	UL94 V-0	Mating Flange	9	Screwless - IDC	1 kV	0.2 mm²	1.5 mm²	300 V	5 mm	0.197 in	Plug Female Sockets	24 AWG	16 AWG	1	Free Hanging (In-Line)	Tin	12 A	Green	10 A	180 °	9	1.5 mm˛	0.2 mm˛

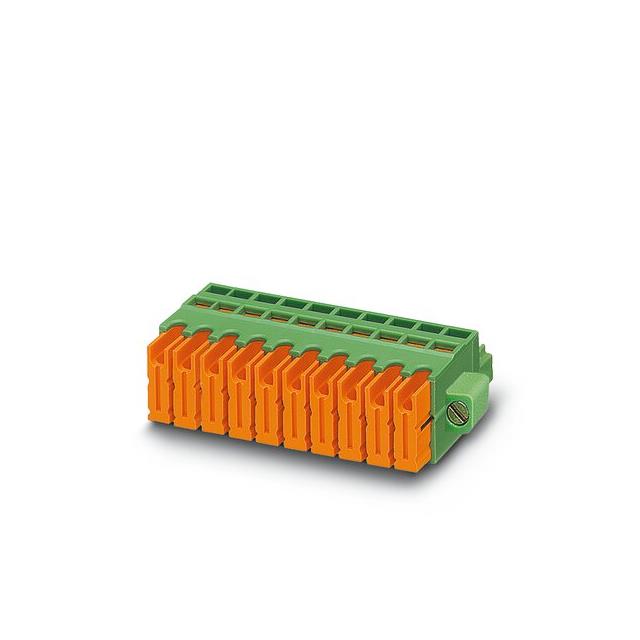

Phoenix Contact 1897555	Polyamide (PA) Nylon	0.508 in	12.9 mm	UL94 V-0	Mating Flange		IDC	400 V	0.34 mm²	0.5 mm²	300 V	3.81 mm	0.15 in	Plug Female Sockets	24 AWG	20 AWG	1	Free Hanging (In-Line)	Tin	6 A	Green	6 A	180 °	3
Phoenix Contact 1718229	Polyamide (PA) Nylon	0.772 in	19.6 mm	UL94 V-0	Mating Flange	13	Screwless - IDC	1 kV	0.2 mm²	1.5 mm²	300 V	5 mm	0.197 in	Plug Female Sockets	24 AWG	16 AWG	1	Free Hanging (In-Line)	Tin	12 A	Green	10 A	180 °	13	1.5 mm˛	0.2 mm˛
Phoenix Contact 1738199		0.772 in	19.6 mm		Mating Flange	2	Screwless - IDC	500 V	0.2 mm²	1.5 mm²	300 V	5 mm	0.197 in	Plug Female Sockets	24 AWG	16 AWG	1	Free Hanging (In-Line)	Tin	12 A			180 °	2
Phoenix Contact 1718096	Polyamide (PA) Nylon	0.772 in	19.6 mm	UL94 V-0		15	Screwless - IDC	1 kV	0.2 mm²	1.5 mm²	300 V	5 mm	0.197 in	Plug Female Sockets	24 AWG	16 AWG	1	Free Hanging (In-Line)	Tin	12 A	Green	10 A	180 °	15	1.5 mm˛	0.2 mm˛
Phoenix Contact 1883459	Polyamide (PA) Nylon			UL94 V-0	Mating Flange	12	IDC	1 kV	0.5 mm²	1 mm²	300 V	5.08 mm	0.2 in	Plug Female Sockets	22 AWG	18 AWG	1	Free Hanging (In-Line)	Tin	10 A	Green	10 A	180 °	12			0.591 in	15 mm

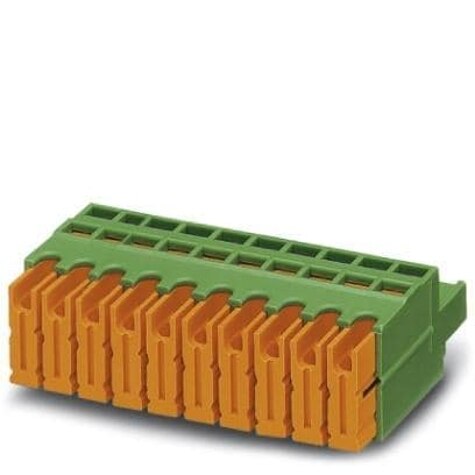

Phoenix Contact 1883828	Polyamide (PA) Nylon			UL94 V-0		14	IDC	1 kV	0.5 mm²	1 mm²	300 V	5.08 mm	0.2 in	Plug Female Sockets	22 AWG	18 AWG	1	Free Hanging (In-Line)	Tin	10 A	Green	10 A	180 °	14	1 mm˛	0.5 mm˛	0.591 in	15 mm

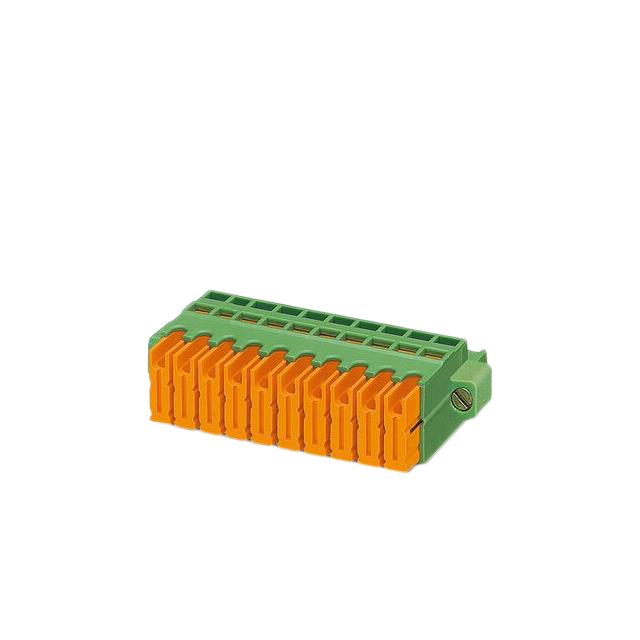

Phoenix Contact 1883352	Polyamide (PA) Nylon			UL94 V-0	Mating Flange	2	IDC	1 kV	0.5 mm²	1 mm²	300 V	5.08 mm	0.2 in	Plug Female Sockets	22 AWG	18 AWG	1	Free Hanging (In-Line)	Tin	10 A	Green	10 A	180 °	2			0.591 in	15 mm

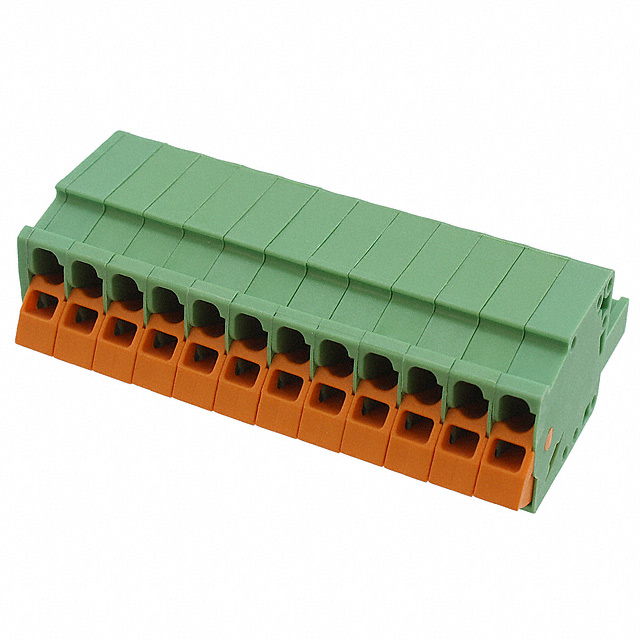

Phoenix Contact 1718067	Polyamide (PA) Nylon	0.772 in	19.6 mm	UL94 V-0		12	Screwless - IDC	1 kV	0.2 mm²	1.5 mm²	300 V	5 mm	0.197 in	Plug Female Sockets	24 AWG	16 AWG	1	Free Hanging (In-Line)	Tin	12 A	Green	10 A	180 °	12	1.5 mm˛	0.2 mm˛
