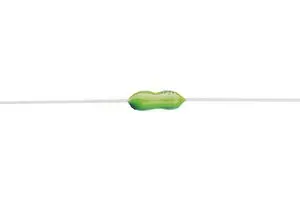

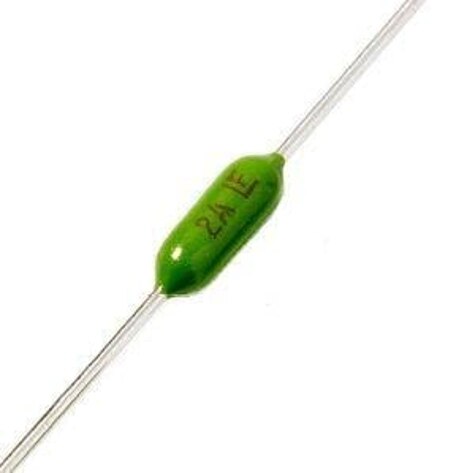

FUSE 125V PICO FA RoHS Halogen-Free 3A
Description
AI
The PICO® II Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.
Beta
⌘K
FUSE 125V PICO FA RoHS Halogen-Free 3A
FUSE 125V PICO FA RoHS Halogen-Free 3A
| Part | DC Cold Resistance | Fuse Type | Voltage Rating - DC | Response Time | Melting I²t | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Approval Agency | Voltage Rating - AC | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 0.0295 Ohms | Board Mount (Cartridge Style Excluded) | 125 VDC | Fast Blow | 1.19 | 2.8 mm | 7.11 mm | 0.11 in | 0.28 in | CCC CSA cURus PSE TUV | 125 V | 3 A | 50 A 300 A | Through Hole | -55 C | 125 °C | Axial |
 LITTELFUSE | 0.0295 Ohms | Board Mount (Cartridge Style Excluded) | 125 VDC | Fast Blow | 1.19 | 2.8 mm | 7.11 mm | 0.11 in | 0.28 in | CCC CSA cURus PSE TUV | 125 V | 3 A | 50 A 300 A | Through Hole | -55 C | 125 °C | Axial |
 LITTELFUSE | Board Mount (Cartridge Style Excluded) | 125 VDC | Fast Blow | 1.19 | 2.8 mm | 7.11 mm | 0.11 in | 0.28 in | CCC CSA cURus PSE TUV | 125 V | 3 A | 50 A 300 A | Through Hole | -55 C | 125 °C | Axial | |
 LITTELFUSE | Board Mount (Cartridge Style Excluded) | 125 VDC | Fast Blow | 1.19 | 2.8 mm | 7.11 mm | 0.11 in | 0.28 in | CCC CSA cURus PSE TUV | 125 V | 3 A | 50 A 300 A | Through Hole | -55 C | 125 °C | Axial |
