74LVC1G3157GV Series

10 Ω single-pole double-throw analog switch

Manufacturer: Freescale Semiconductor - NXP

Catalog

10 Ω single-pole double-throw analog switch

Part	Current - Leakage (IS(off)) (Max)	Number of Circuits	Grade	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Circuit	Operating Temperature [Min]	Operating Temperature [Max]	On-State Resistance (Max) [Max]	Multiplexer/Demultiplexer Circuit	Qualification	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth	Charge Injection	Supplier Device Package	Package / Case	Supplier Device Package [x]	Supplier Device Package [y]
Freescale Semiconductor - NXP 74LVC1G3157GV-Q10H	5 µA	1	Automotive	4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1	AEC-Q100	Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-TSOP	SC-74 SOT-457

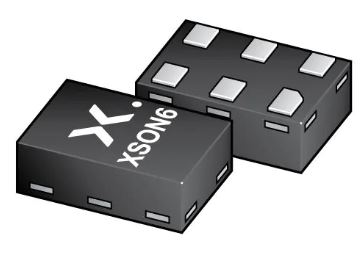

Freescale Semiconductor - NXP 74LVC1G3157GM,115	5 µA	1		4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1		Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-XSON SOT886 (1.45x1)	6-XFDFN
Freescale Semiconductor - NXP 74LVC1G3157GN,132	5 µA	1		4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1		Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-XSON	6-XFDFN	0.9	1
Freescale Semiconductor - NXP 74LVC1G3157GM,132	5 µA	1		4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1		Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-XSON SOT886 (1.45x1)	6-XFDFN
Freescale Semiconductor - NXP 74LVC1G3157GM-Q10X	5 µA	1	Automotive	4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1	AEC-Q100	Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-XSON SOT886 (1.45x1)	6-XFDFN
Freescale Semiconductor - NXP 74LVC1G3157GW-Q10H	5 µA	1	Automotive	4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1	AEC-Q100	Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-TSSOP	6-TSSOP SC-88 SOT-363
Freescale Semiconductor - NXP 74LVC1G3157GV,125	5 µA	1		4 ns	3.5 ns	1.65 V	5.5 V	SPDT	-40 °C	125 °C	10 Ohms	2:1		Surface Mount	6 pF	6 pF	300 MHz	7.5 pC	6-TSOP	SC-74 SOT-457

Catalog

10 Ω single-pole double-throw analog switch

Key Features

• Wide supply voltage range from 1.65 V to 5.5 V

• Very low ON resistance:

• 7.5 Ω (typical) at VCC= 2.7 V

• 6.5 Ω (typical) at VCC= 3.3 V

• 6 Ω (typical) at VCC= 5 V

• 32 mA continuous switch current

• Break-before-make switching

• High noise immunity

• CMOS low power dissipation

• TTL interface compatibility at 3.3 V

• Latch-up performance meets requirements of JESD 78 Class I

• Overvoltage tolerant control inputs to 5.5 V

• ESD protection:

• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V

• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V

• Multiple package options

• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

Description

The 74LVC1G3157 is a single-pole double-throw analog switch with a digital select input (S), two independent inputs/outputs (Y0 and Y1) and a common input/output (Z). Control inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.
