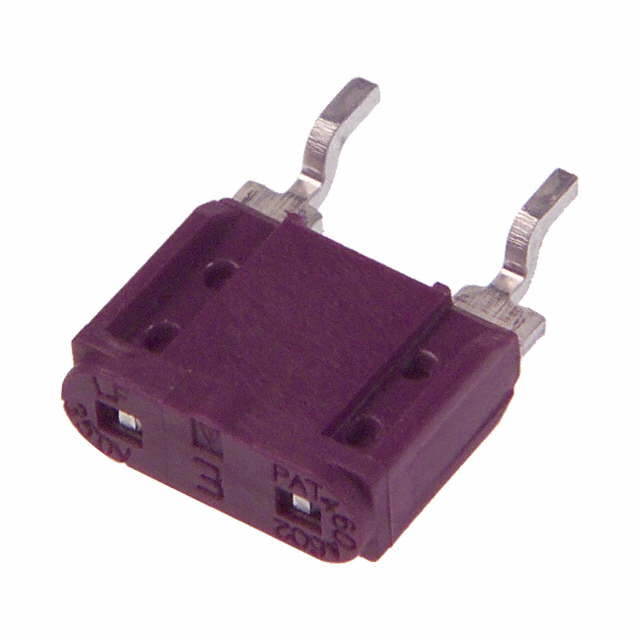

0446003 Series
350V EBF FA SM PB FREE 3A VIOLET COLOR
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
350V EBF FA SM PB FREE 3A VIOLET COLOR
Beta
⌘K
350V EBF FA SM PB FREE 3A VIOLET COLOR
350V EBF FA SM PB FREE 3A VIOLET COLOR
350V EBF FA SM PB FREE 3A VIOLET COLOR
| Part | Fuse Type | Package / Case | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Current Rating (Amps) | Melting I²t | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Mounting Type | DC Cold Resistance | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Board Mount | 2-SMD Gull Wing | 10.92 mm | 3.81 mm | 8.76 mm | 0.345 in | 0.15 " | 0.43 " | 3 A | 9.4 | 125 VDC | 50 A 100 A | 350 V | Surface Mount | 0.034 Ohms | Fast Blow | 125 °C | -40 °C | CSA UL |
