29088 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Coil Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Seal Rating | Coil Type | Termination Style | Approval Agency | Coil Current | Contact Form | Operate Time | Relay Type | Mounting Type | Switching Voltage | Contact Rating (Current) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

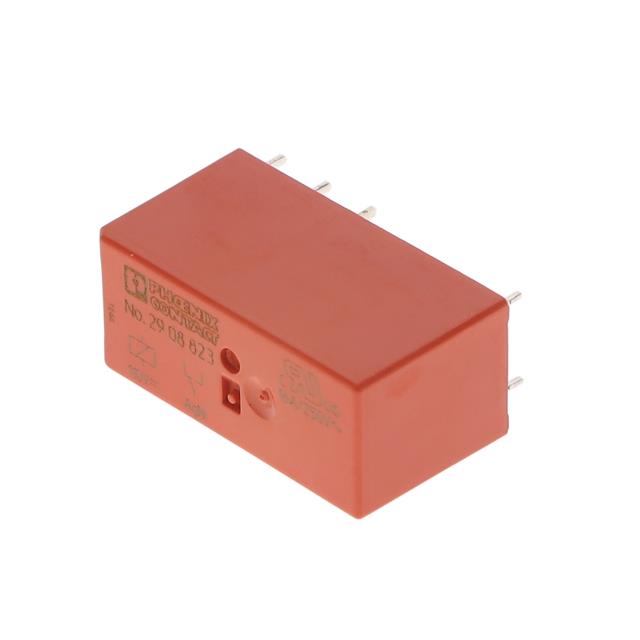

 Phoenix Contact | 1.4 kOhms | 24 VDC | 3 ms | 85 °C | -40 C | Sealed - Fully | Non Latching | PC Pin | cULus EAC UR | 17 mA | SPDT (1 Form C) | 7 ms | General Purpose | Through Hole | 250 VAC 250 VDC | 16 A | Silver Nickel (AgNi) |

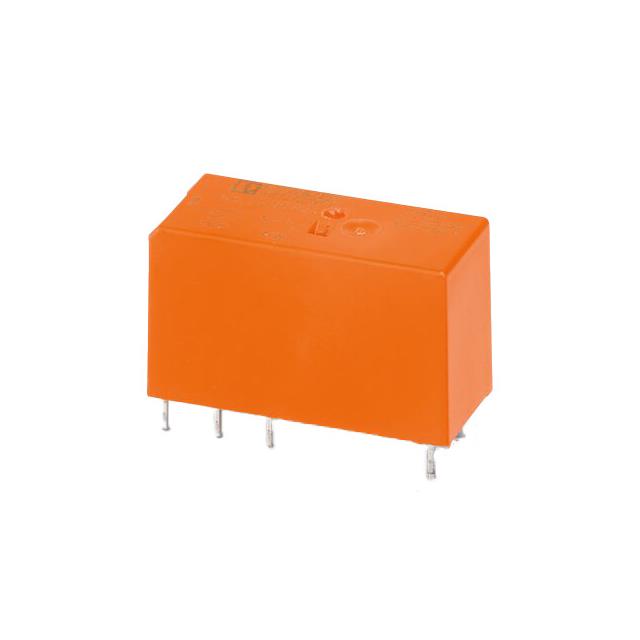

 Phoenix Contact | 26.8 kOhms | 110 VDC | 3 ms | 85 °C | -40 C | Non Latching | PC Pin | cULus EAC UR | 4.1 mA | DPDT (2 Form C) | 7 ms | General Purpose | Through Hole | 250 VAC 250 VDC | 8 A | Silver Nickel (AgNi) | |
 Phoenix Contact | 26.8 kOhms | 110 VDC | 3 ms | 85 °C | -40 C | Non Latching | PC Pin | cULus EAC UR | 4.1 mA | SPDT (1 Form C) | 7 ms | General Purpose | Through Hole | 250 VAC 250 VDC | 16 A | Silver Nickel (AgNi) | |
 Phoenix Contact | 363.6 Ohms | 12 VDC | 3 ms | 85 °C | -40 C | Non Latching | PC Pin | cULus EAC UR | 33 mA | SPDT (1 Form C) | 7 ms | General Purpose | Through Hole | 250 VAC 250 VDC | 16 A | Silver Nickel (AgNi) |
