XRCMD Series

Catalog

CRYSTAL 32MHZ 20PPM

Part	Frequency Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Frequency	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Load Capacitance	Operating Mode	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Frequency Stability
Murata Electronics XRCMD32M000FBP50R0
Murata Electronics XRCMD32M000FZQ52R0	30 ppm	0.013 "	0.33 mm	32 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	6 pF	Fundamental	60 Ohms	85 °C	-40 C	4-SMD No Lead	MHz Crystal
Murata Electronics XRCMD32M000FXQ52R0	25 ppm	0.013 "	0.33 mm	32 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	6 pF	Fundamental	80 Ohm	85 °C	-30 ░C	4-SMD No Lead	MHz Crystal	25 ppm
Murata Electronics XRCMD37M400F1Q01R0	10 ppm	0.013 "	0.33 mm	37.4 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	8 pF	Fundamental	60 Ohms	70 °C	-20 ░C	4-SMD No Lead	MHz Crystal	10 ppm
Murata Electronics XRCMD32M000FXP50R0	30 ppm	0.013 "	0.33 mm	32 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	6 pF	Fundamental	100 Ohms	85 °C	-30 ░C	4-SMD No Lead	MHz Crystal
Murata Electronics XRCMD48M000FXQ58R0	20 ppm	0.013 "	0.33 mm	48 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	7 pF	Fundamental	40 Ohms	85 °C	-30 ░C	4-SMD No Lead	MHz Crystal
Murata Electronics XRCMD32M000FXP53R0	30 ppm	0.013 "	0.33 mm	32 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	6 pF	Fundamental	80 Ohm	85 °C	-40 C	4-SMD No Lead	MHz Crystal	20 ppm
Murata Electronics XRCMD32M000F1P00R0	10 ppm	0.013 "	0.33 mm	32 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	6 pF	Fundamental	80 Ohm	85 °C	-30 ░C	4-SMD No Lead	MHz Crystal	20 ppm
Murata Electronics XRCMD40M000FXQ57R0	20 ppm	0.013 "	0.33 mm	40 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	10 pF	Fundamental	60 Ohms	85 °C	-30 ░C	4-SMD No Lead	MHz Crystal	20 ppm

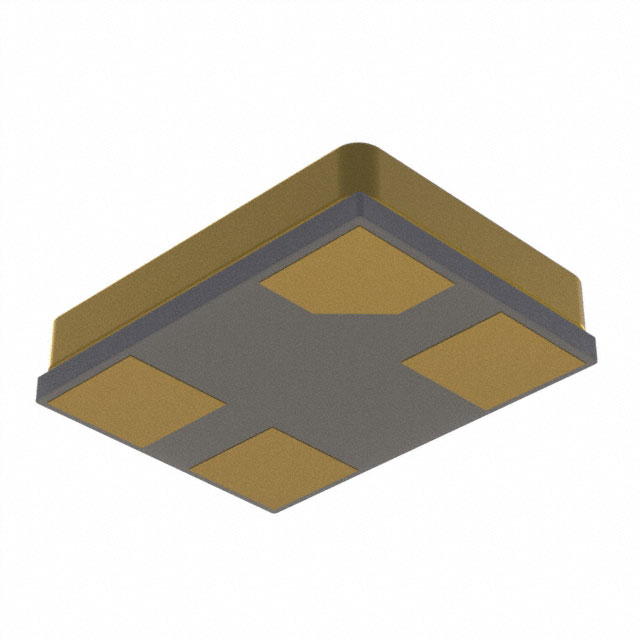

Murata Electronics XRCMD40M000FXQ61R0	20 ppm	0.013 "	0.33 mm	40 MHz	Surface Mount	1.6 mm	1.2 mm	0.047 in	0.063 "	5.8 pF	Fundamental	60 Ohms	85 °C	-30 ░C	4-SMD No Lead	MHz Crystal	20 ppm
