8579-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]

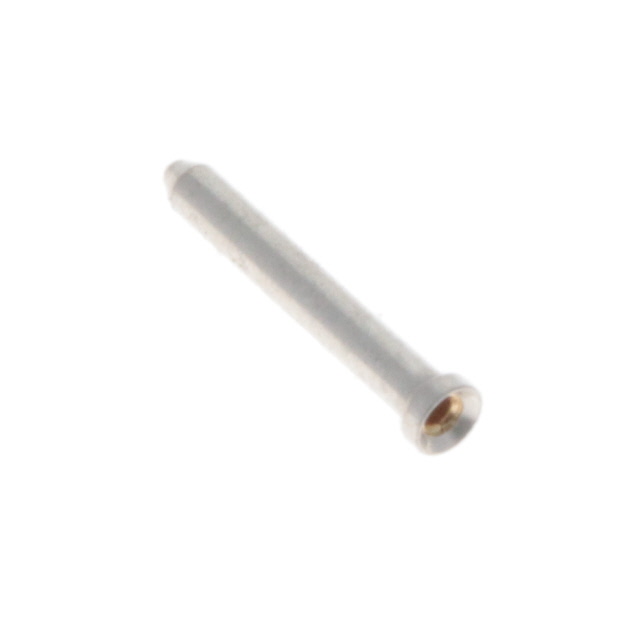

Mill-Max Manufacturing Corp. 8579-1-15-01-11-27-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	30 Áin	0.76 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 8579-1-15-80-21-27-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	30 Áin	0.76 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 8579-1-15-80-11-84-10-0	-55 C	125 °C	Tin	Solder	Beryllium Copper	1.4 mm	0.055 in	100 µin	2.54 µm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 8579-1-15-01-21-02-10-0	-55 C	125 °C	Tin-Lead	Solder	Beryllium Copper	1.4 mm	0.055 in	100 µin	2.54 µm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm

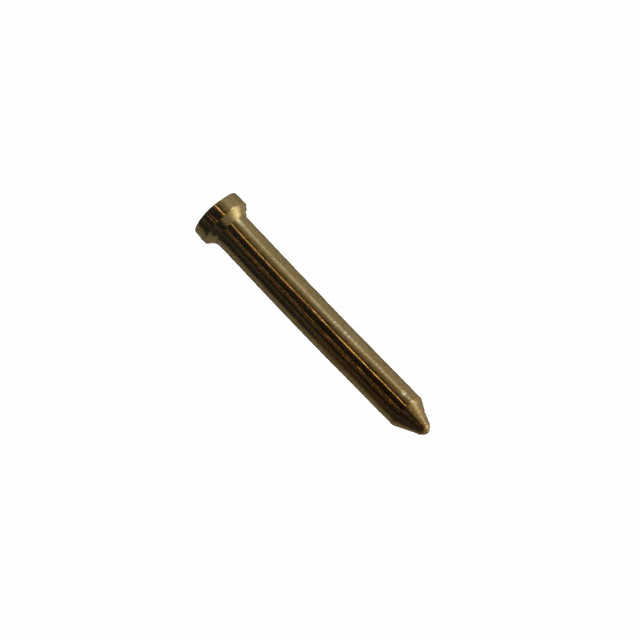

Mill-Max Manufacturing Corp. 8579-1-15-15-21-27-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	30 Áin	0.76 Ám	0.022 in	0.38 mm	0.015 "		1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm	0.56 mm
Mill-Max Manufacturing Corp. 8579-1-15-01-11-14-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	10 Áin	0.25 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 8579-1-15-15-21-14-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	10 Áin	0.25 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm

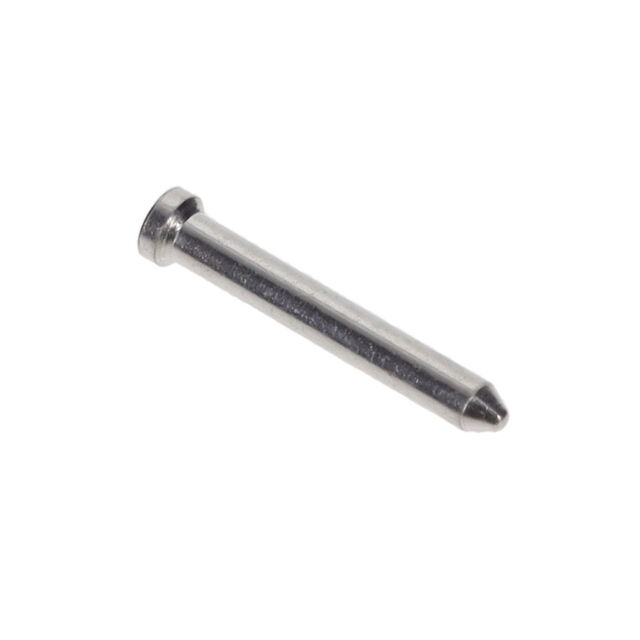

Mill-Max Manufacturing Corp. 8579-1-15-80-11-27-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	30 Áin	0.76 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm

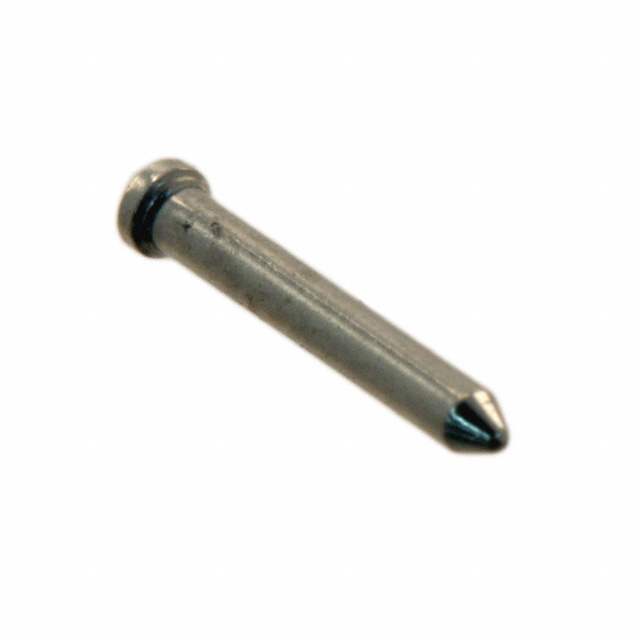

Mill-Max Manufacturing Corp. 8579-1-15-01-21-27-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	30 Áin	0.76 Ám	0.022 in	0.38 mm	0.015 "		1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm	0.56 mm
Mill-Max Manufacturing Corp. 8579-1-15-01-21-14-10-0	-55 C	125 °C	Gold	Solder	Beryllium Copper	1.4 mm	0.055 in	10 Áin	0.25 Ám	0.02 in	0.38 mm	0.015 "	0.51 mm	1.02 mm	0.04 in	0.295 in	7.49 mm	No Tail	0.031 in	0.79 mm
