ANX-I Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 20A 32VDC BLADE MAX

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Mounting Type	Color	Approval Agency	Voltage Rating - DC	Package / Case	Fuse Type	Response Time

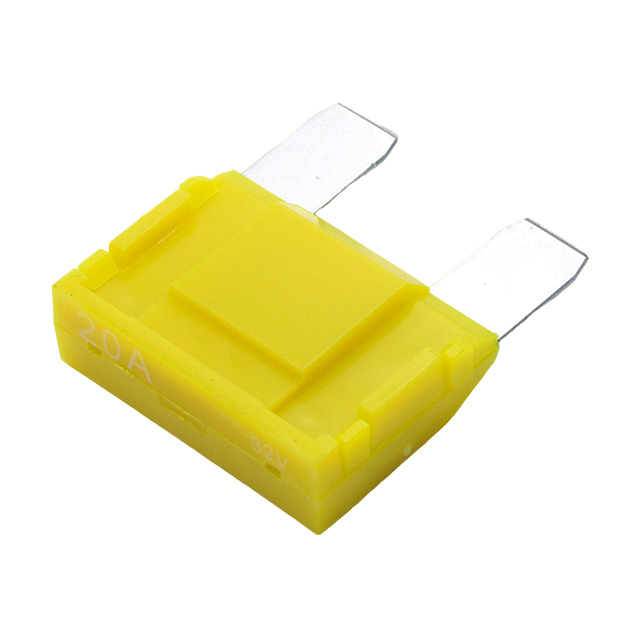

OptiFuse ANX-I-20A	0.35 in	29 mm	8.9 mm	0.85 in	1.142 in	21.6 mm	1 kA	20 A	Requires Holder	Yellow	ISO SAE	32 V	Blade Max	Automotive	Fast Blow

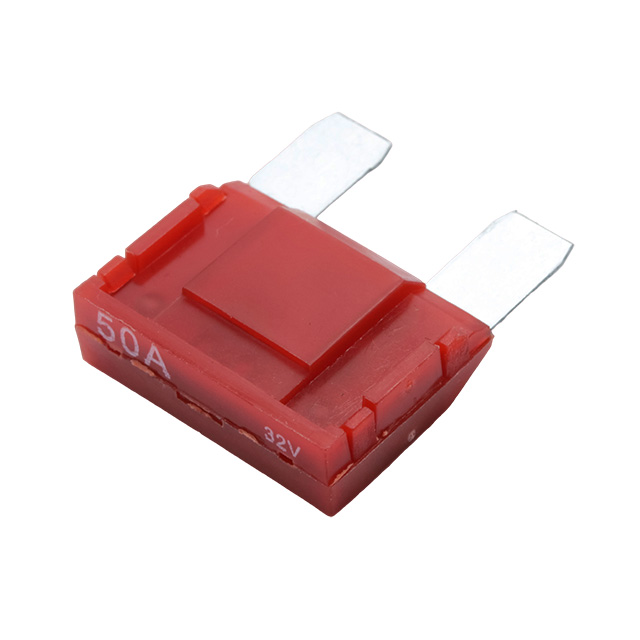

OptiFuse ANX-I-50A	0.35 in	29 mm	8.9 mm	0.85 in	1.142 in	21.6 mm	1 kA	50 A	Requires Holder	Red	ISO SAE	32 V	Blade Max	Automotive	Fast Blow

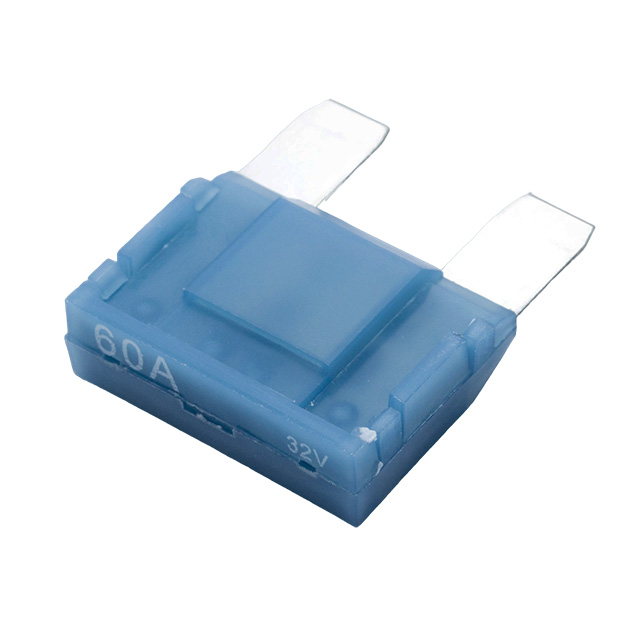

OptiFuse ANX-I-60A	0.35 in	29 mm	8.9 mm	0.85 in	1.142 in	21.6 mm	1 kA	60 A	Requires Holder	Blue	ISO SAE	32 V	Blade Max	Automotive	Fast Blow

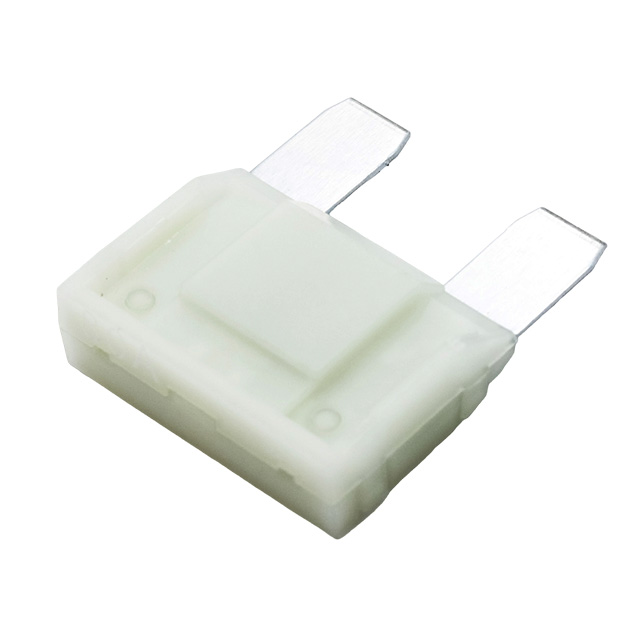

OptiFuse ANX-I-80A	0.35 in	29 mm	8.9 mm	0.85 in	1.142 in	21.6 mm	1 kA	80 A	Requires Holder	Clear	ISO SAE	32 V	Blade Max	Automotive	Fast Blow

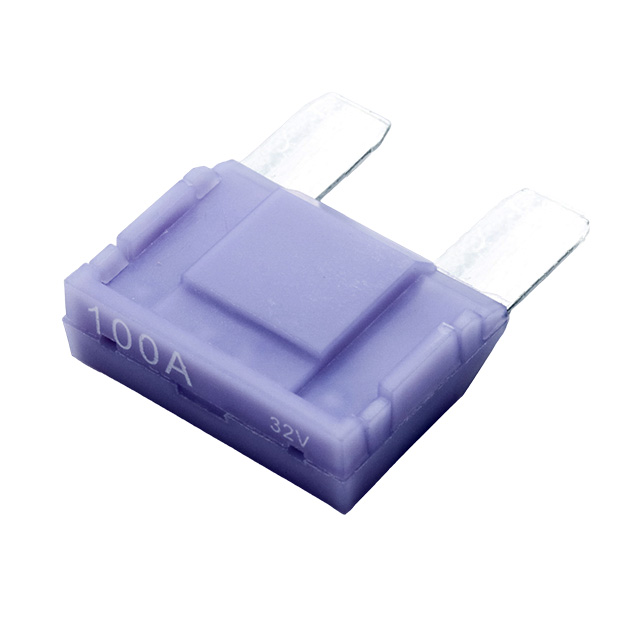

OptiFuse ANX-I-100A	0.35 in	29 mm	8.9 mm	0.85 in	1.142 in	21.6 mm	1 kA	100 A	Requires Holder	Violet	ISO SAE	32 V	Blade Max	Automotive	Fast Blow
