0962-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

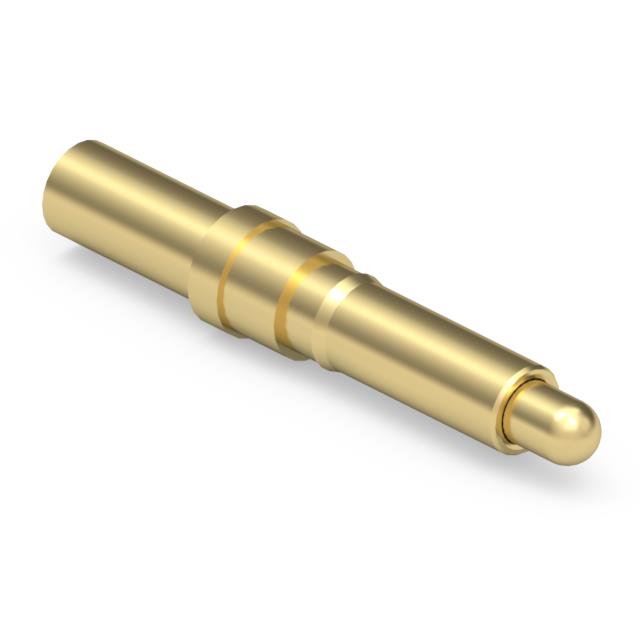

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Current Rating (Amps) | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height | Minimum Working Height | Minimum Working Height | Operating Force - Initial | Contact Material | Mating Cycles | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Finish | Recommended Working Height | Recommended Working Height | Features [Min] | Features [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.085 in | 2.16 mm | 5.2 A | 60 gf | 0.042 in | 1.07 mm | 0.308 in | 7.83 mm | 0.09 in | 2.28 mm | 10 gf | Brass Alloy | 1000000 | Free Hanging (In-Line) | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | Gold | 0.117 in | 2.98 mm | 24 | 28 |
