TMCM-1160 Series

Motor mountable stepper motor controller/driver module 9 to 51V, 2.8A, 256 µSteps, with USB, CAN and RS485 Interface, StallGuard, CoolStep

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Motor mountable stepper motor controller/driver module 9 to 51V, 2.8A, 256 µSteps, with USB, CAN and RS485 Interface, StallGuard, CoolStep

Part	For Use With/Related Products	Accessory Type	Usage	Motor Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output	Control / Drive Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Voltage - Load [Max]	Voltage - Load [Min]	Interface

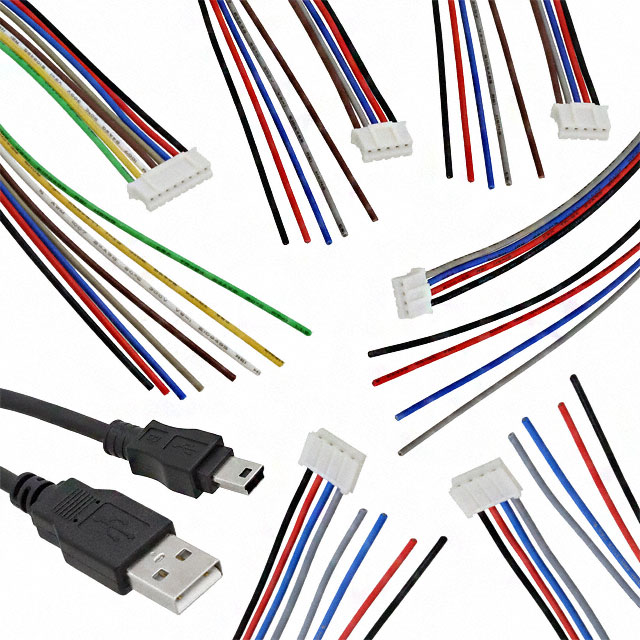

Analog Devices Inc./Maxim Integrated TMCM-1160-CABLE	TMCM-1160 Series	Cable Assembly	Motor

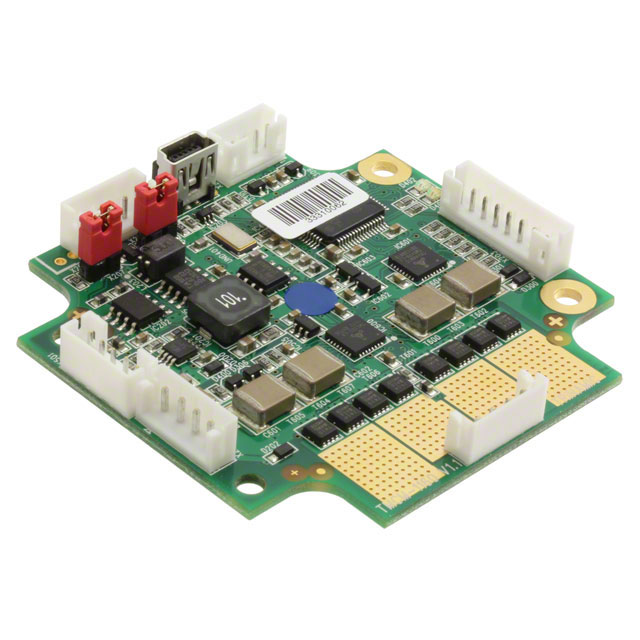

Analog Devices Inc./Maxim Integrated TMCM-1160-CANOPEN				Stepper	40 °C	0 °C	Chassis Mount	2.8 A	Bipolar Stepper	12 VDC	48 V	Board	51 V	9 V

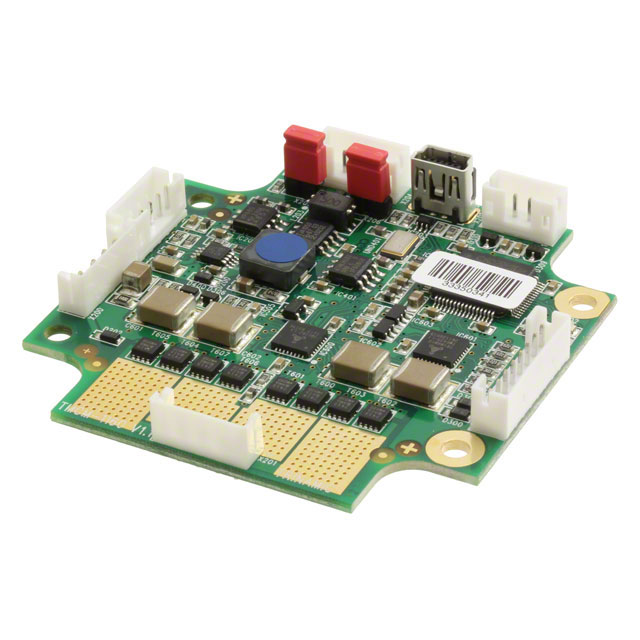

Analog Devices Inc./Maxim Integrated TMCM-1160-TMCL				Stepper	40 °C	0 °C	Chassis Mount	2.8 A	Bipolar Stepper	12 VDC	48 V	Board	51 V	9 V	RS-485 Step / Direction USB

Catalog

Motor mountable stepper motor controller/driver module 9 to 51V, 2.8A, 256 µSteps, with USB, CAN and RS485 Interface, StallGuard, CoolStep

Description

The TMCM-1160 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic StallGuard2™, CoolStep™and SpreadCycle™chopper technology and has a trapezoidal ramp generator. The TMCM-1160 is capable of driving up to 4A of current from each output (with proper heatsinking). It is designed for an operating voltage of 9 to 51V. The device provides a RS485, CAN, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL/ CANopen communication.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDE
