FZG.4B Series
Manufacturer: LEMO
Beta
⌘K

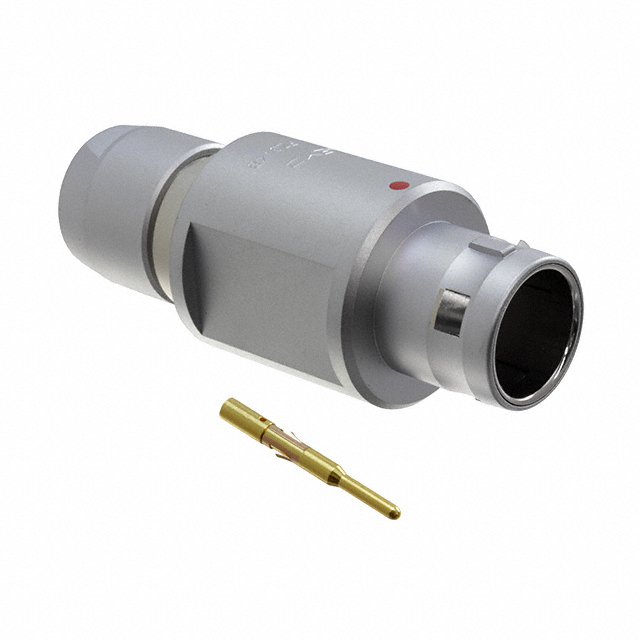

CONN PLUG MALE 10POS GOLD CRIMP
| Part | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insert Material | Shell Size - Insert | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Backshell Material, Plating | Contact Material | Termination | Mounting Type | Connector Type | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Orientation [custom] | Number of Positions | Shell Material | Color | Shielding | Primary Material | Ingress Protection | Shell Finish | Contact Finish - Mating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
39.4 µin | 1 µm | Polyetheretherketone (PEEK) | 310 | Push-Pull | -55 C | 250 °C | 17 A | Brass Chrome | Brass | Crimp | Free Hanging (In-Line) | Plug Male Pins | 0.417 in | 0.472 in | 12 mm | 10.6 mm | G | 10 | Brass | Silver | Shielded | Metal | IP50 - Dust Protected | Chrome | Gold | UL94 V-0 |
