505550 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD RECEPTACLE, 0.40MM PITCH, B8 SERIES, 0.80MM MATED HEIGHT, 2.50MM MATED WIDTH, 30 CIRCUITS

Part	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Features	Mounting Type	Contact Finish	Number of Rows [custom]	Connector Type	Pitch	Pitch	Number of Positions	Mated Stacking Heights	Number of Positions [custom]
Molex 5055503020	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	30	0.8 mm

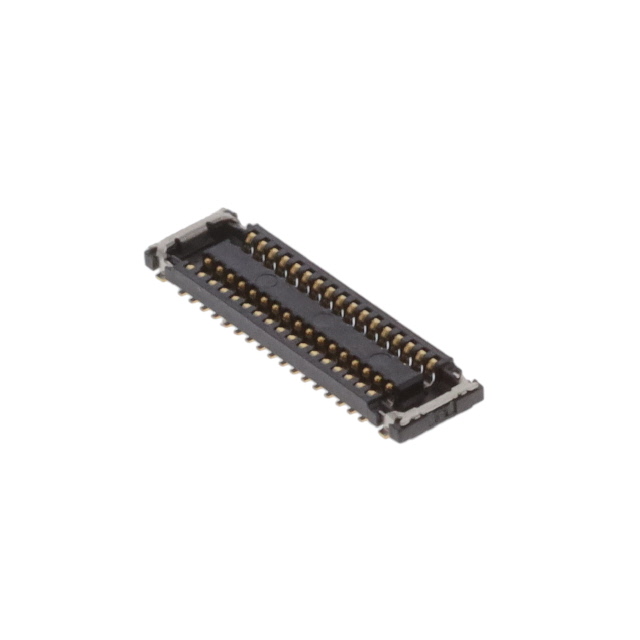

Molex 5055503420	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in		0.8 mm	34

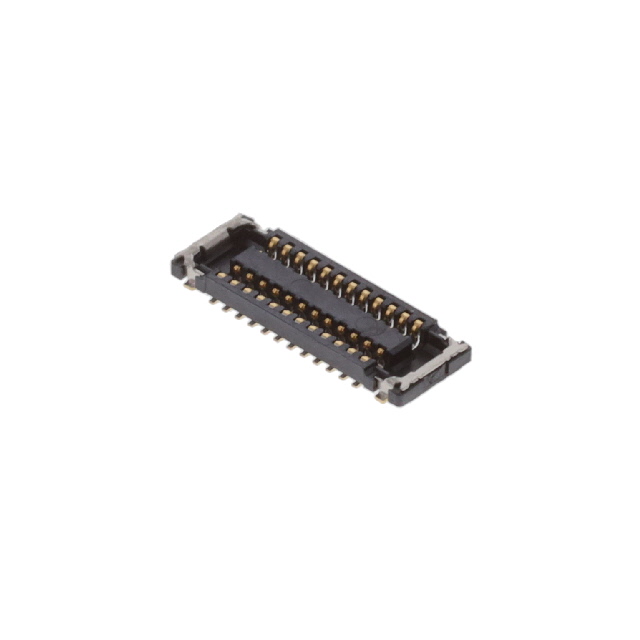

Molex 5055502420	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	24	0.8 mm
Molex 5055501620	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	16	0.8 mm

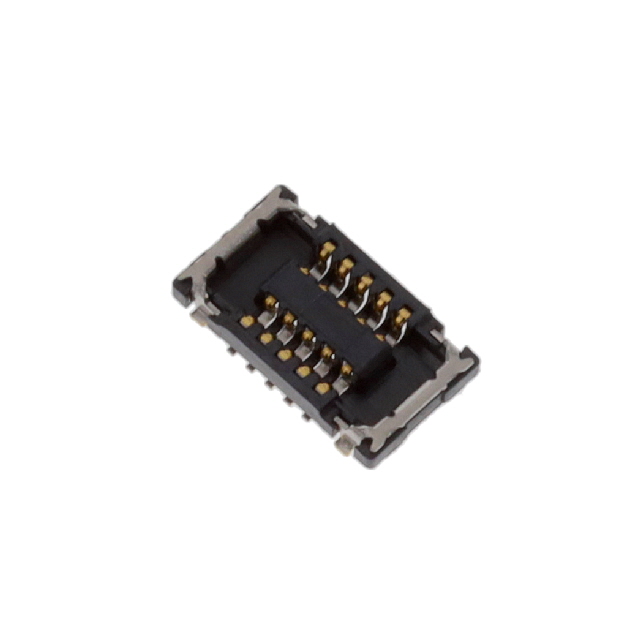

Molex 5055501020	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	10	0.8 mm

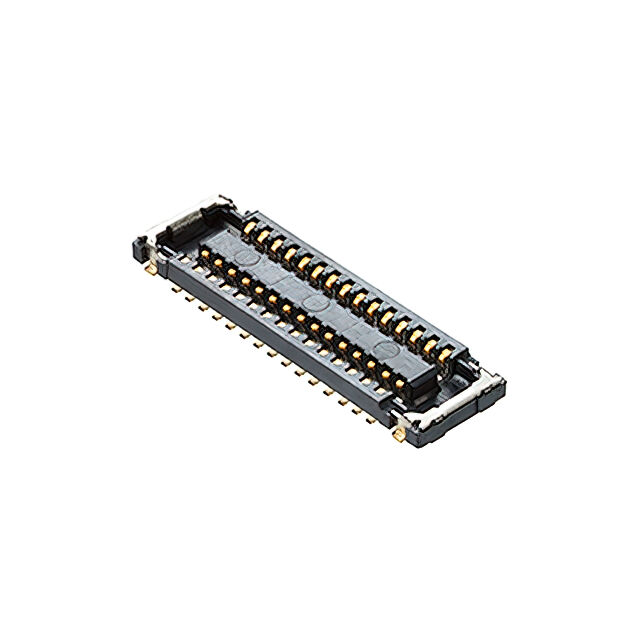

Molex 5055502020	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	20	0.8 mm

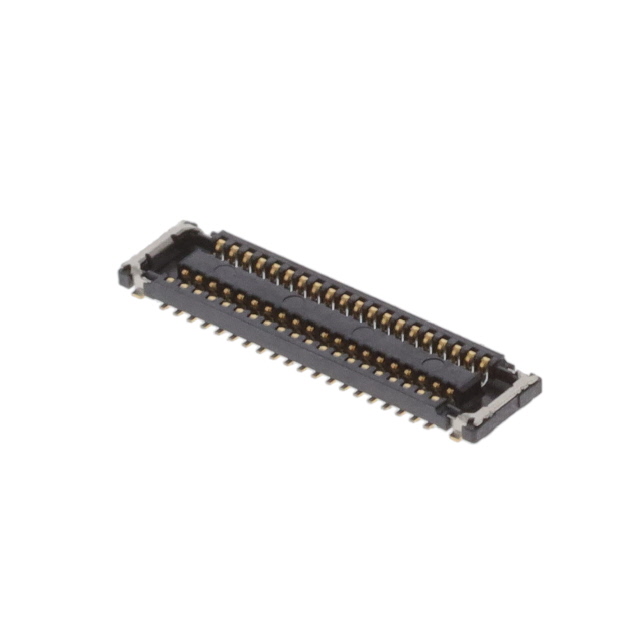

Molex 5055504020	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	40	0.8 mm

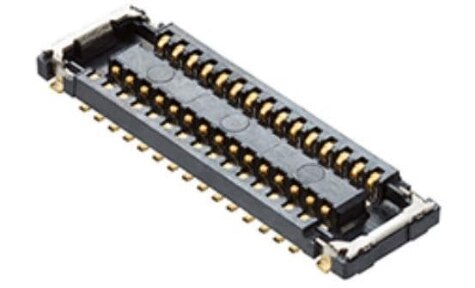

Molex 5055505020	0.1 Ám	4 Áin	0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	50	0.8 mm
Molex 5055502410			0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in	24	0.8 mm
Molex 5055503410			0.65 mm	0.026 "	Solder Retention	Surface Mount	Gold	2	Receptacle Center Strip Contacts	0.4 mm	0.016 in		0.8 mm	34
