NPPN081 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 8POS 0.079 GOLD SMD
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Contact Material | Termination | Number of Positions Loaded | Fastening Type | Insulation Color | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Finish - Mating | Voltage Rating | Mounting Type | Insulation Height [z] | Insulation Height [z] | Number of Rows | Number of Positions | Connector Type | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

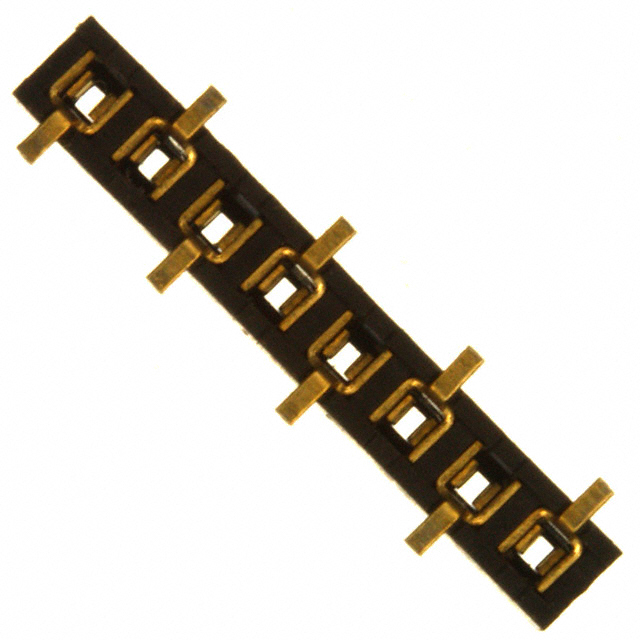

 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Flash | Square | Phosphor Bronze | Solder | All | Push-Pull | Black | Flash | -40 C | 105 ░C | Gold | 2 A | 0.079 " | 2 mm | UL94 V-0 | Gold | 150 VDC | Surface Mount | 0.181 in | 4.6 mm | 1 | 8 | Header | Female Socket | ||

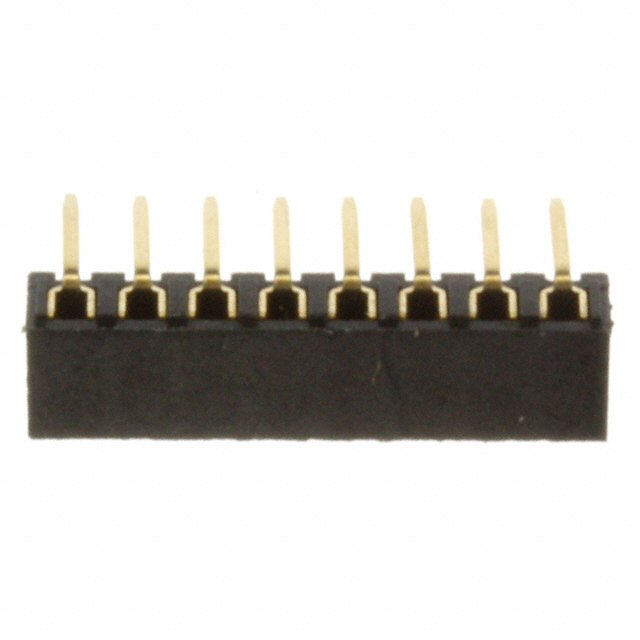

 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Flash | Square | Phosphor Bronze | Solder | All | Push-Pull | Black | Flash | -40 C | 105 ░C | Gold | 2 A | 0.079 " | 2 mm | UL94 V-0 | Gold | Right Angle Through Hole | 1 | 8 | Header | Female Socket | 0.122 in | 3.1 mm |
