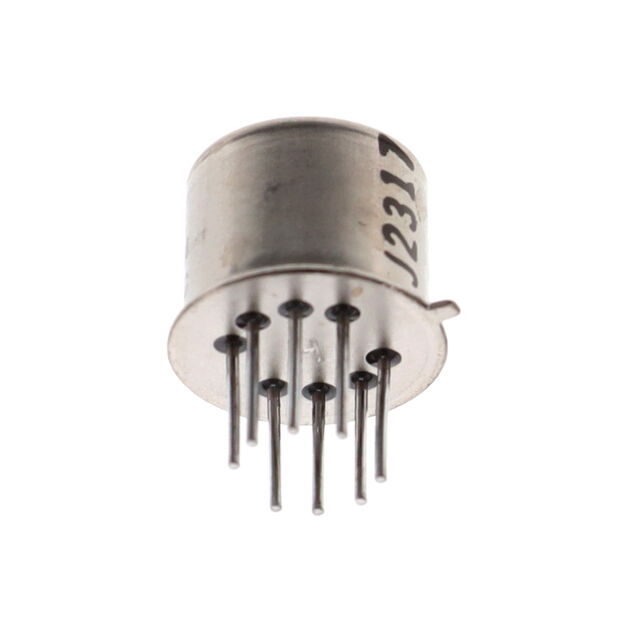

JMAPD Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 12V
| Part | Coil Current | Contact Form | Switching Voltage | Coil Voltage | Load - Max Switching | Contact Rating (Current) | Release Time | Coil Type | Seal Rating | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Relay Type | Mounting Type | Operate Time | Features | Coil Resistance | Contact Material | Must Release Voltage | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 30.8 mA | DPDT (2 Form C) | 28 VDC 115 VAC | 12 VDC | 28 W 115 VA | 1 A | 4 ms | Non Latching | Sealed - Hermetically | 7 VDC | 125 °C | -65 ░C | PC Pin | General Purpose | Through Hole | 2 ms | Diode | 390 Ohms | Gold (Au) Silver Palladium (AgPd) | 0.63 VDC | ||
TE Connectivity Aerospace, Defense and Marine | 17 mA | DPDT (2 Form C) | 28 VDC 115 VAC | 26.5 VDC | 28 W 115 VA | 1 A | 4 ms | Non Latching | Sealed - Hermetically | 15.2 VDC | 125 °C | -65 ░C | PC Pin | General Purpose | Through Hole | 2 ms | Diode | 1560 Ohms | Gold (Au) Silver Palladium (AgPd) | 1.8 VDC | ||
TE Connectivity Aerospace, Defense and Marine | 20.5 mA | DPDT (2 Form C) | 28 VDC 115 VAC | 18 VDC | 28 W 115 VA | 1 A | 4 ms | Non Latching | Sealed - Hermetically | 10.5 VDC | 125 °C | -65 ░C | PC Pin | General Purpose | Through Hole | 2 ms | Diode | 880 Ohms | Gold (Au) Silver Palladium (AgPd) | 0.91 VDC | ||
TE Connectivity Aerospace, Defense and Marine | 18.5 mA | DPDT (2 Form C) | 28 VDC 115 VAC | 26.5 VDC | 28 W 115 VA | 1 A | 4 ms | Non Latching | Sealed - Hermetically | 15.2 VDC | 125 °C | -65 ░C | PC Pin | General Purpose | Through Hole | 2 ms | Diode | 1560 Ohms | Gold (Au) Silver Palladium (AgPd) | 1.8 VDC | Military | MIL-R-39016/20 |
 TE Connectivity Aerospace, Defense and Marine | 17 mA | DPDT (2 Form C) | 28 VDC 115 VAC | 26.5 VDC | 28 W 115 VA | 1 A | 4 ms | Non Latching | Sealed - Hermetically | 14.2 VDC | 125 °C | -65 ░C | PC Pin | General Purpose | Through Hole | 2 ms | Diode | 1560 Ohms | Gold (Au) Silver Palladium (AgPd) | Military | ||
TE Connectivity Aerospace, Defense and Marine | 128.2 mA | DPDT (2 Form C) | 28 VDC 115 VAC | 5 VDC | 28 W 115 VA | 1 A | 4 ms | Non Latching | Sealed - Hermetically | 3.2 VDC | 125 °C | -65 ░C | PC Pin | General Purpose | Through Hole | 2 ms | Diode | 39 Ohms | Gold (Au) Silver Palladium (AgPd) | 0.6 VDC | Military | MIL-R-39016/20 |
