RC915 Series

Catalog

SWITCH ROCKER SPDT 16A 125V

Part	Electrical Life	Color - Actuator/Cap	Termination Style	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Circuit	Switch Function	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Features	Mounting Type	Actuator Type

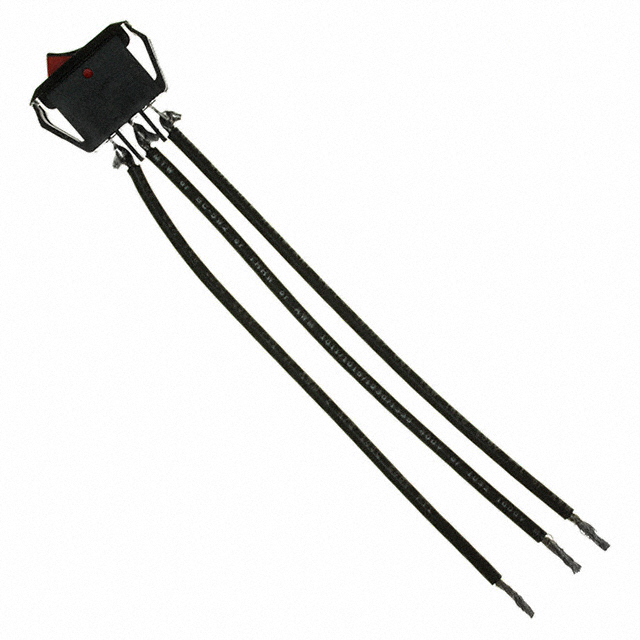

Carling Technologies RC915-VB-B-0-V	100000 Cycles	Black Red	Wire Leads	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	13.97 mm	28.58 mm	No Marking	SPDT	On-Off-On	85 °C	16 A	125 V	Two-Tone Rocker	Panel Mount Snap-In	Concave (Curved)
Carling Technologies RC915-RB-B-0-N	100000 Cycles	Black	Wire Leads	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	13.97 mm	28.58 mm	No Marking	SPDT	On-Off-On	85 °C	16 A	125 V		Panel Mount Snap-In	Concave (Curved)
Carling Technologies RC915-R2-2-0-N	100000 Cycles	White	Wire Leads	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE	13.97 mm	28.58 mm	No Marking	SPDT	On-Off-On	85 °C	16 A	125 V		Panel Mount Snap-In	Concave (Curved)
