TPS61022 Series

8-A boost converter with 0.5-V ultra-low input voltage

Catalog

8-A boost converter with 0.5-V ultra-low input voltage

Part	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Current - Output	Output Type	Synchronous Rectifier	Voltage - Output (Max) [Max]	Function	Mounting Type	Output Configuration	Frequency - Switching	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Topology

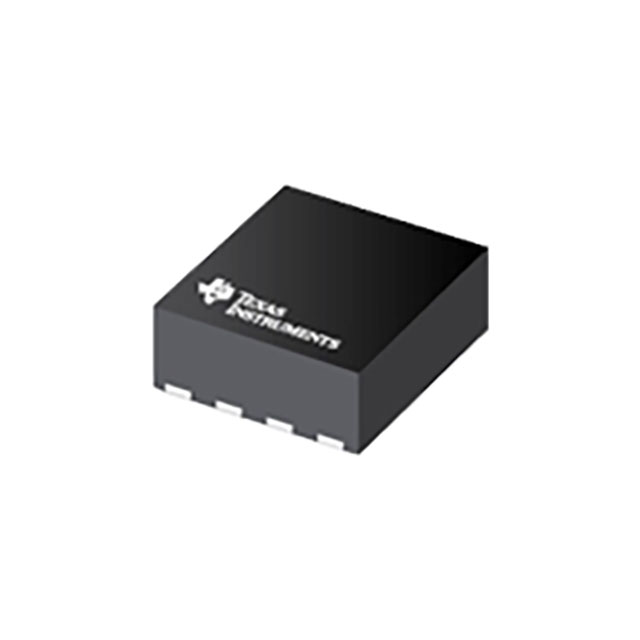

Texas Instruments TPS61022RWUR	7-VQFN-HR (2x2)	5.5 V	2.2 V	0.5 V	8 A	Adjustable		5.5 V	Step-Up	Surface Mount	Positive	1 MHz 600 kHz	1	-40 °C	125 ¯C	7-VFQFN	Boost

Catalog

8-A boost converter with 0.5-V ultra-low input voltage

Key Features

• Input voltage range: 0.5 V to 5.5 V1.8-V minimum input voltage for start-upOutput voltage setting range: 2.2 V to 5.5 VTwo 12-mΩ (LS) / 18-mΩ (HS) MOSFETs8-A valley switching current limit94.7% efficiency at VIN= 3.6 V, VOUT= 5 V and IOUT= 3 A1-MHz switching frequency when VIN> 1.5 V and 0.6-MHz switching frequency when VIN< 1 V±2.5% reference voltage accuracy over –40°C to +125°CPin-selectable auto PFM operation mode or forced PWM operation mode at light loadPass-through mode when VIN> VOUTTrue disconnection between input and output during shutdownOutput overvoltage and thermal shutdown protectionsOutput short-circuit protection2-mm × 2-mm VQFN 7-pin packageInput voltage range: 0.5 V to 5.5 V1.8-V minimum input voltage for start-upOutput voltage setting range: 2.2 V to 5.5 VTwo 12-mΩ (LS) / 18-mΩ (HS) MOSFETs8-A valley switching current limit94.7% efficiency at VIN= 3.6 V, VOUT= 5 V and IOUT= 3 A1-MHz switching frequency when VIN> 1.5 V and 0.6-MHz switching frequency when VIN< 1 V±2.5% reference voltage accuracy over –40°C to +125°CPin-selectable auto PFM operation mode or forced PWM operation mode at light loadPass-through mode when VIN> VOUTTrue disconnection between input and output during shutdownOutput overvoltage and thermal shutdown protectionsOutput short-circuit protection2-mm × 2-mm VQFN 7-pin package

Description

The TPS61022 provides a power supply solution for portable equipment and IoT devices powered by various batteries and super capacitors. The TPS61022 has minimum 6.5-A valley switch current limit over full temperature range. With a wide input voltage range of 0.5 V to 5.5 V, the TPS61022 supports supercapacitor backup power applications, which may deeply discharge the supercapacitor. The TPS61022 operates at 1-MHz switching frequency when the input voltage is above 1.5 V. the switching frequency decreases gradually to 0.6 MHz when the input voltage is below 1.5 V down to 1 V. A MODE pin sets the TPS61022 operating either in power-save mode or forced PWM mode in light load condition. The TPS61022 only consumes a 26-µA quiescent current from VOUTin light load condition. During shutdown, the load is completely disconnected from the input power. The TPS61022 has 5.7-V output overvoltage protection, output short-circuit protection, and thermal shutdown protection. The TPS61022 offers a very small solution size with its 2-mm × 2-mm VQFN package and minimum amount of external components. The TPS61022 provides a power supply solution for portable equipment and IoT devices powered by various batteries and super capacitors. The TPS61022 has minimum 6.5-A valley switch current limit over full temperature range. With a wide input voltage range of 0.5 V to 5.5 V, the TPS61022 supports supercapacitor backup power applications, which may deeply discharge the supercapacitor. The TPS61022 operates at 1-MHz switching frequency when the input voltage is above 1.5 V. the switching frequency decreases gradually to 0.6 MHz when the input voltage is below 1.5 V down to 1 V. A MODE pin sets the TPS61022 operating either in power-save mode or forced PWM mode in light load condition. The TPS61022 only consumes a 26-µA quiescent current from VOUTin light load condition. During shutdown, the load is completely disconnected from the input power. The TPS61022 has 5.7-V output overvoltage protection, output short-circuit protection, and thermal shutdown protection. The TPS61022 offers a very small solution size with its 2-mm × 2-mm VQFN package and minimum amount of external components.
