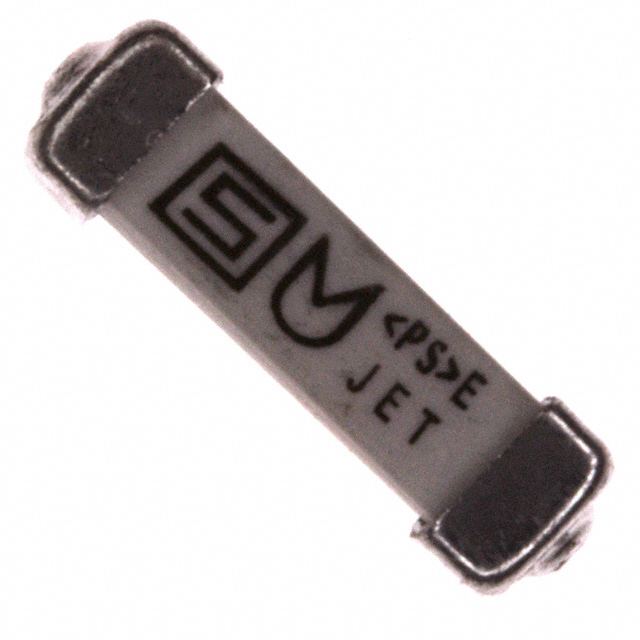

3403.0171 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FUSE BRD MNT 3.15A 250VAC 125VDC
| Part | Current Rating (Amps) | Approval Agency | Voltage Rating - AC | Melting I²t | Package / Case | Fuse Type | Breaking Capacity @ Rated Voltage | Response Time | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 3.15 A | CQC cURus KC PSE/JET UL VDE | 250 V | 14 | 2-SMD Square End Block | Board Mount (Cartridge Style Excluded) | 35 A 200 A | Slow Blow | Surface Mount | -55 C | 125 °C | 0.118 in | 0.118 in | 0.398 in | 3 mm | 10.1 mm | 3 mm | 125 VDC |
