3SBH1 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

RELAY GENERAL PURPOSE 4PDT 2A 6V

Part	Termination Style	Mounting Type	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Switching Voltage	Load - Max Switching	Contact Rating (Current)	Must Release Voltage	Relay Type	Coil Current	Operate Time	Coil Resistance	Seal Rating	Features	Must Operate Voltage	Contact Form	Qualification	Grade	Coil Voltage
TE Connectivity Aerospace, Defense and Marine 9-1617562-1	PC Pin	Through Hole	Non Latching	125 °C	-65 ░C	4 ms	28 VDC 115 VAC	56 W 230 VA	2 A	0.3 VDC	General Purpose	214.3 mA	4 ms	28 Ohms	Sealed - Hermetically	Diode	2.7 VDC	4PDT (4 Form C)

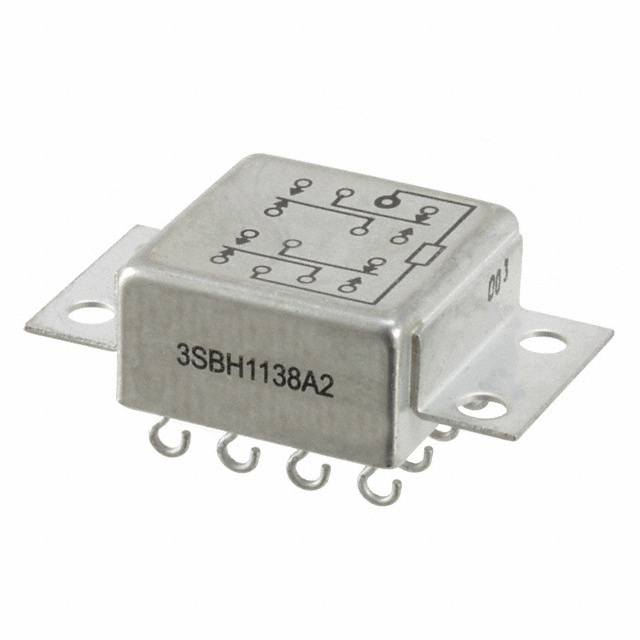

TE Connectivity Aerospace, Defense and Marine 3SBH1138A2	Solder Hook	Chassis Mount	Non Latching	125 °C	-65 ░C	4 ms	28 VDC		2 A	1.5 VDC	General Purpose	36.8 mA	4 ms	720 Ohms	Sealed - Hermetically		13.5 VDC	4PDT (4 Form C)	MIL-R-39016/14	Military	26.5 VDC
TE Connectivity Aerospace, Defense and Marine 1-1617076-3	PC Pin	Through Hole	Non Latching	125 °C	-65 ░C	4 ms	28 VDC		2 A	1.5 VDC	General Purpose	36.8 mA	4 ms	720 Ohms	Sealed - Hermetically		13.5 VDC	4PDT (4 Form C)			26.5 VDC
TE Connectivity Aerospace, Defense and Marine 3SBH1146A2	Solder Hook	Chassis Mount	Non Latching	125 °C	-65 ░C	4 ms	28 VDC 115 VAC	56 W 230 VA	2 A	0.6 VDC	General Purpose	104.3 mA	4 ms		Sealed - Hermetically		5.4 VDC	4PDT (4 Form C)			12 VDC
TE Connectivity Aerospace, Defense and Marine 1617076-6			Non Latching	125 °C	-65 ░C		28 VDC 115 VAC	56 W 230 VA	2 A		General Purpose				Sealed - Hermetically			4PDT (4 Form C)
TE Connectivity Aerospace, Defense and Marine 1617516-8	PC Pin	Chassis Mount	Non Latching	125 °C	-65 ░C	4 ms	28 VDC 115 VAC	56 W 230 VA	2 A	1.5 VDC	General Purpose	36.8 mA	4 ms	720 Ohms	Sealed - Hermetically		13.5 VDC	4PDT (4 Form C)			26.5 VDC
TE Connectivity Aerospace, Defense and Marine 1-1617076-6	PC Pin	Through Hole	Non Latching	125 °C	-65 ░C	4 ms	28 VDC 115 VAC		2 A		General Purpose	104 mA	4 ms		Sealed - Hermetically			4PDT (4 Form C)			12 VDC
TE Connectivity Aerospace, Defense and Marine 3SBH1261A2	Solder Hook	Chassis Mount	Non Latching	125 °C	-65 ░C	4 ms	28 VDC 115 VAC	56 W 230 VA	2 A		General Purpose	36.8 mA	4 ms	720 Ohms	Sealed - Hermetically			4PDT (4 Form C)			26.5 VDC
TE Connectivity Aerospace, Defense and Marine 3-1617076-3	PC Pin	Chassis Mount	Non Latching	125 °C	-65 ░C	4 ms	28 VDC 115 VAC	56 W 230 VA	2 A	1.5 VDC	General Purpose	36.8 mA	4 ms	720 Ohms	Sealed - Hermetically		13.5 VDC	4PDT (4 Form C)			26.5 VDC

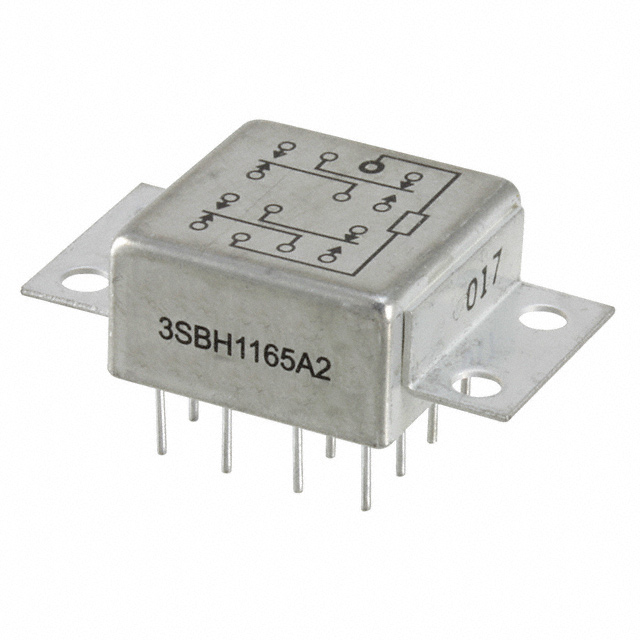

TE Connectivity Aerospace, Defense and Marine 3SBH1165A2	PC Pin	Chassis Mount	Non Latching	125 °C	-65 ░C	4 ms	28 VDC		2 A	1.5 VDC	General Purpose	36.8 mA	4 ms	720 Ohms	Sealed - Hermetically		13.5 VDC	4PDT (4 Form C)	MIL-R-39016/14	Military	26.5 VDC
