PD204-6 Series

Catalog

SENSOR PHOTODIODE 940NM RADIAL

Part	Package / Case	Mounting Type	Wavelength	Spectral Range [Max]	Spectral Range [Min]	Active Area	Current - Dark (Typ)	Response Time	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - DC Reverse (Vr) (Max) [Max]

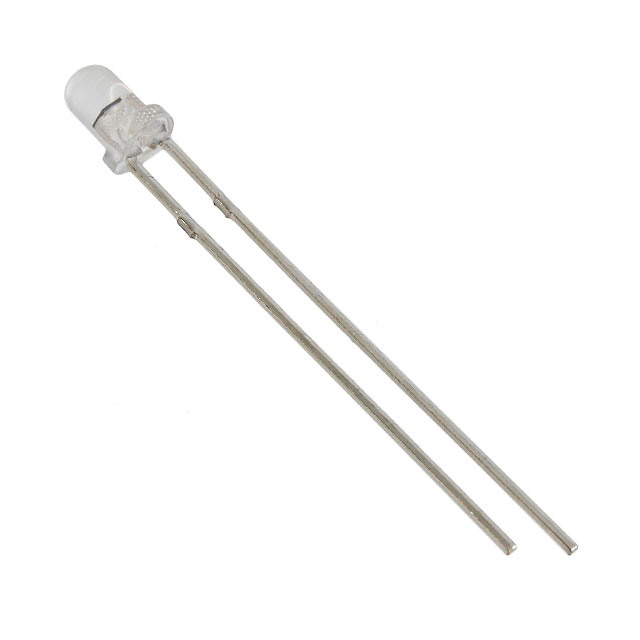

Everlight Electronics Co Ltd PD204-6C/L3	Radial	Through Hole	940 nm	1100 nm	760 nm	9 mm²	10 nA	10 ns	PIN	85 °C	-25 °C	170 V

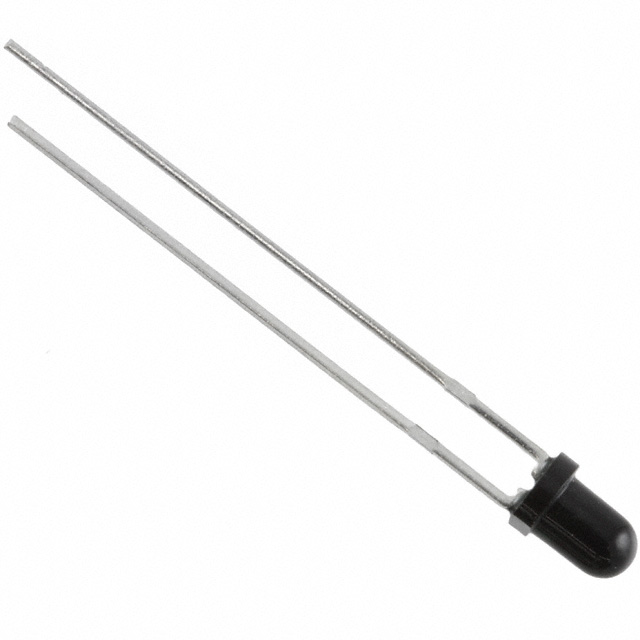

Everlight Electronics Co Ltd PD204-6B	Radial T-1 Lens	Through Hole	940 nm	1100 nm	840 nm		10 nA	6 ns	PIN	85 °C	-25 °C	170 V

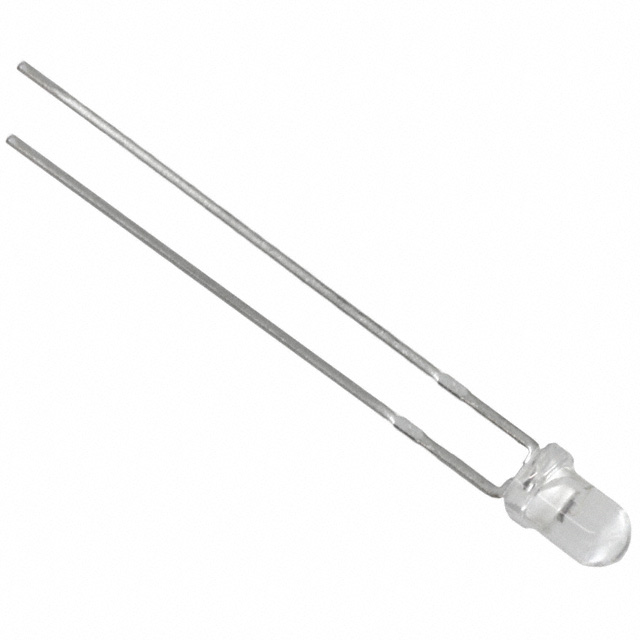

Everlight Electronics Co Ltd PD204-6C	Radial	Through Hole	940 nm	1100 nm	400 nm	9 mm²	10 nA	6 ns	PIN	85 °C	-25 °C	170 V
