BG304 Series

Manufacturer: GCT

Catalog

PIN HEADER, PIN HEADER, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 5 CONTACTS, THROUGH HOLE

Part	Contact Finish Thickness - Post	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Shrouding	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Contact Type	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Material

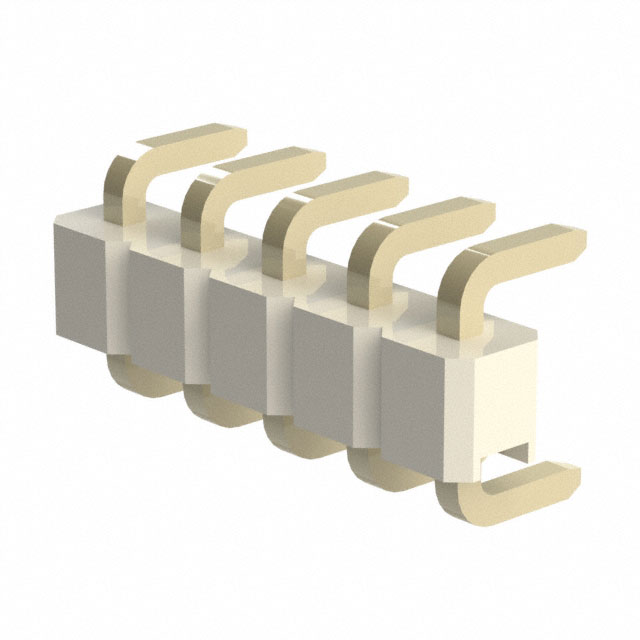

GCT BG304-05-A-0500-L-G	Flash	Solder	0.475 in	12.07 mm	Gold	Natural	Through Hole	-40 C	105 ░C	Push-Pull	1	Unshrouded	Gold	5	UL94 V-0	All	Male Pin	Square	0.081 in	2.06 mm	0.098 "	2.5 mm	0.1 "	2.54 mm	Header	3 A	Flash	Brass

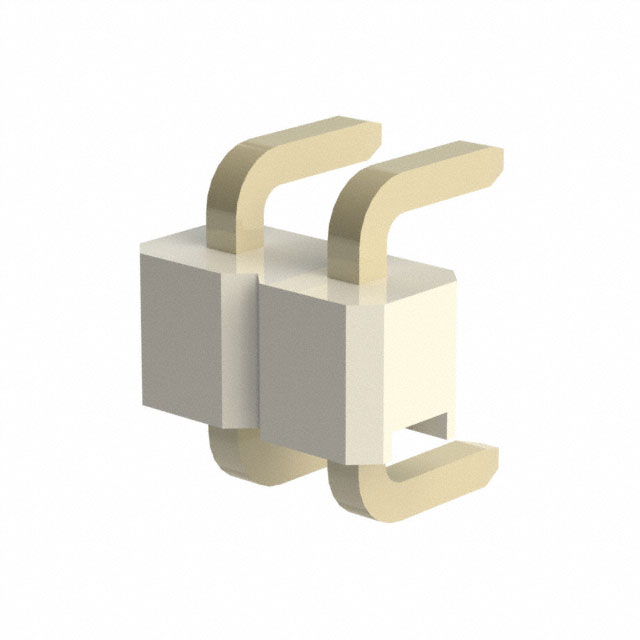

GCT BG304-02-A-0500-L-G	Flash	Solder	0.475 in	12.07 mm	Gold	Natural	Through Hole	-40 C	105 ░C	Push-Pull	1	Unshrouded	Gold	2	UL94 V-0	All	Male Pin	Square	0.081 in	2.06 mm	0.098 "	2.5 mm	0.1 "	2.54 mm	Header	3 A	Flash	Brass

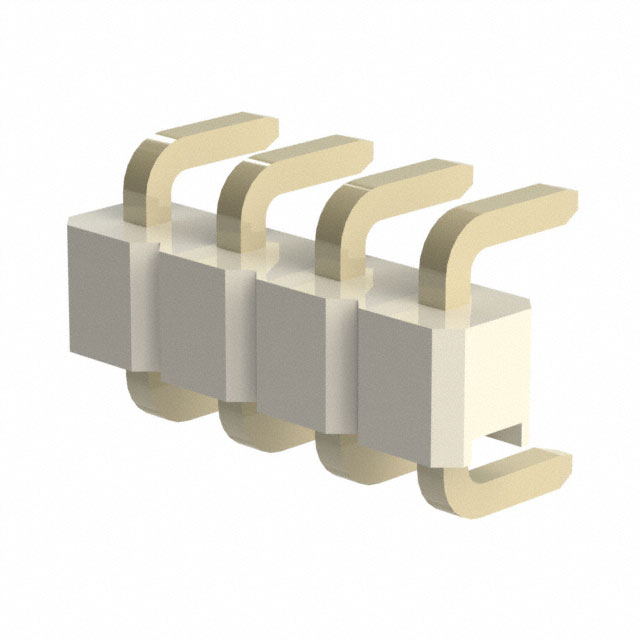

GCT BG304-04-A-0500-L-G	Flash	Solder	0.475 in	12.07 mm	Gold	Natural	Through Hole	-40 C	105 ░C	Push-Pull	1	Unshrouded	Gold	4	UL94 V-0	All	Male Pin	Square	0.081 in	2.06 mm	0.098 "	2.5 mm	0.1 "	2.54 mm	Header	3 A	Flash	Brass

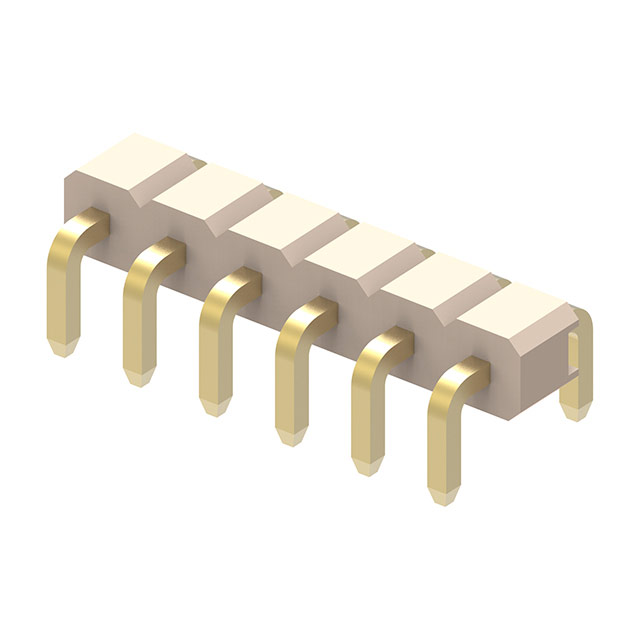

GCT BG304-06-A-0500-L-G	Flash	Solder	0.475 in	12.07 mm	Gold	Natural	Through Hole	-40 C	105 ░C	Push-Pull	1	Unshrouded	Gold	6	UL94 V-0	All	Male Pin	Square	0.081 in	2.06 mm	0.098 "	2.5 mm	0.1 "	2.54 mm	Header	3 A	Flash	Brass

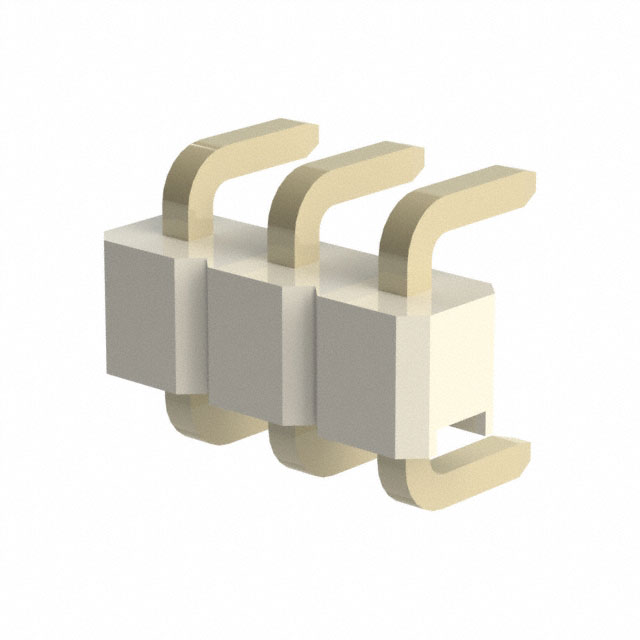

GCT BG304-03-A-0500-L-G	Flash	Solder	0.475 in	12.07 mm	Gold	Natural	Through Hole	-40 C	105 ░C	Push-Pull	1	Unshrouded	Gold		UL94 V-0	All	Male Pin	Square	0.081 in	2.06 mm	0.098 "	2.5 mm	0.1 "	2.54 mm	Header	3 A	Flash	Brass
