1986374 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

STR PLUG, 3.81MM, GREEN, RH, 5

Part	Insulation Height	Insulation Height	Material Flammability Rating	Positions Per Level	Contact Mating Finish	Color	Termination Style	Plug Wire Entry	Type	Mounting Type	Current - UL	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Pitch [x]	Pitch [x]	Number of Levels	Features	Contact Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions	Number of Positions

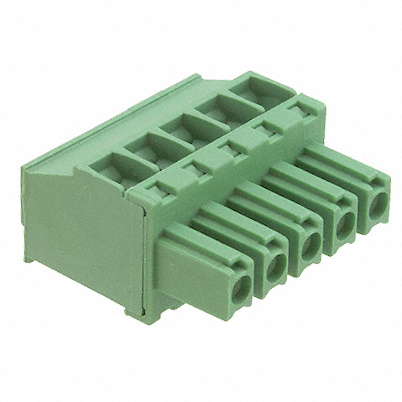

TE Connectivity Raychem Cable Protection 1986374-5	0.756 in	19.2 mm	UL94 V-0	5	Tin	Green	Screw - Rising Cage Clamp	90 °	Plug Female Sockets	Free Hanging (In-Line)	11 A	-40 °C	110 °C	14 AWG	30 AWG	300 V	M2	0.05 mm²	2 mm²	0.15 in	3.81 mm	1	Side Stacking	Phosphor Bronze

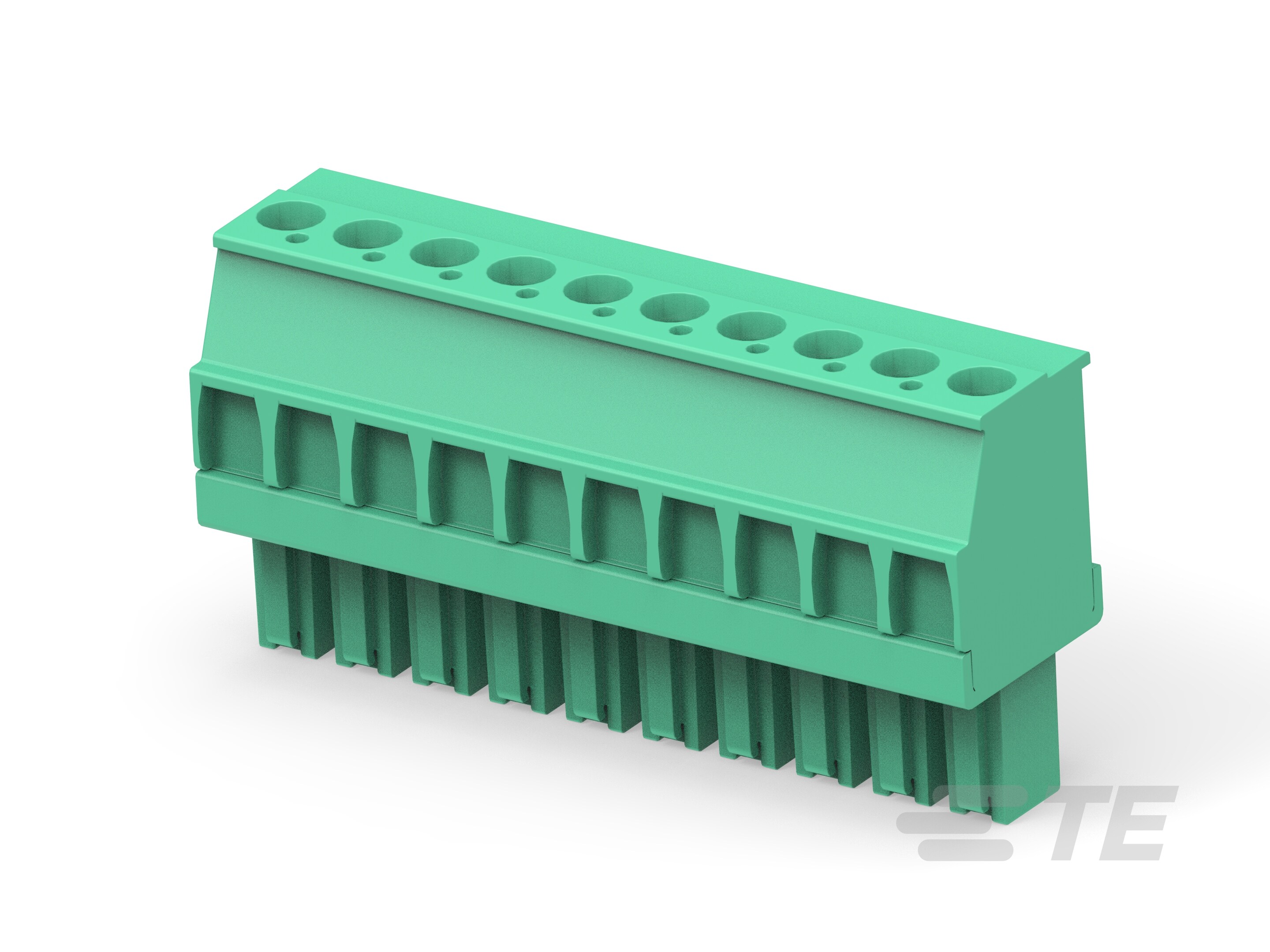

TE Connectivity Raychem Cable Protection 1-1986374-0	0.756 in	19.2 mm	UL94 V-0	10	Tin	Green	Screw - Rising Cage Clamp	90 °	Plug Female Sockets	Free Hanging (In-Line)	11 A	-40 °C	110 °C	14 AWG	30 AWG	300 V	M2			0.15 in	3.81 mm	1	Side Stacking	Phosphor Bronze	2 mm˛	0.05 mm˛	10

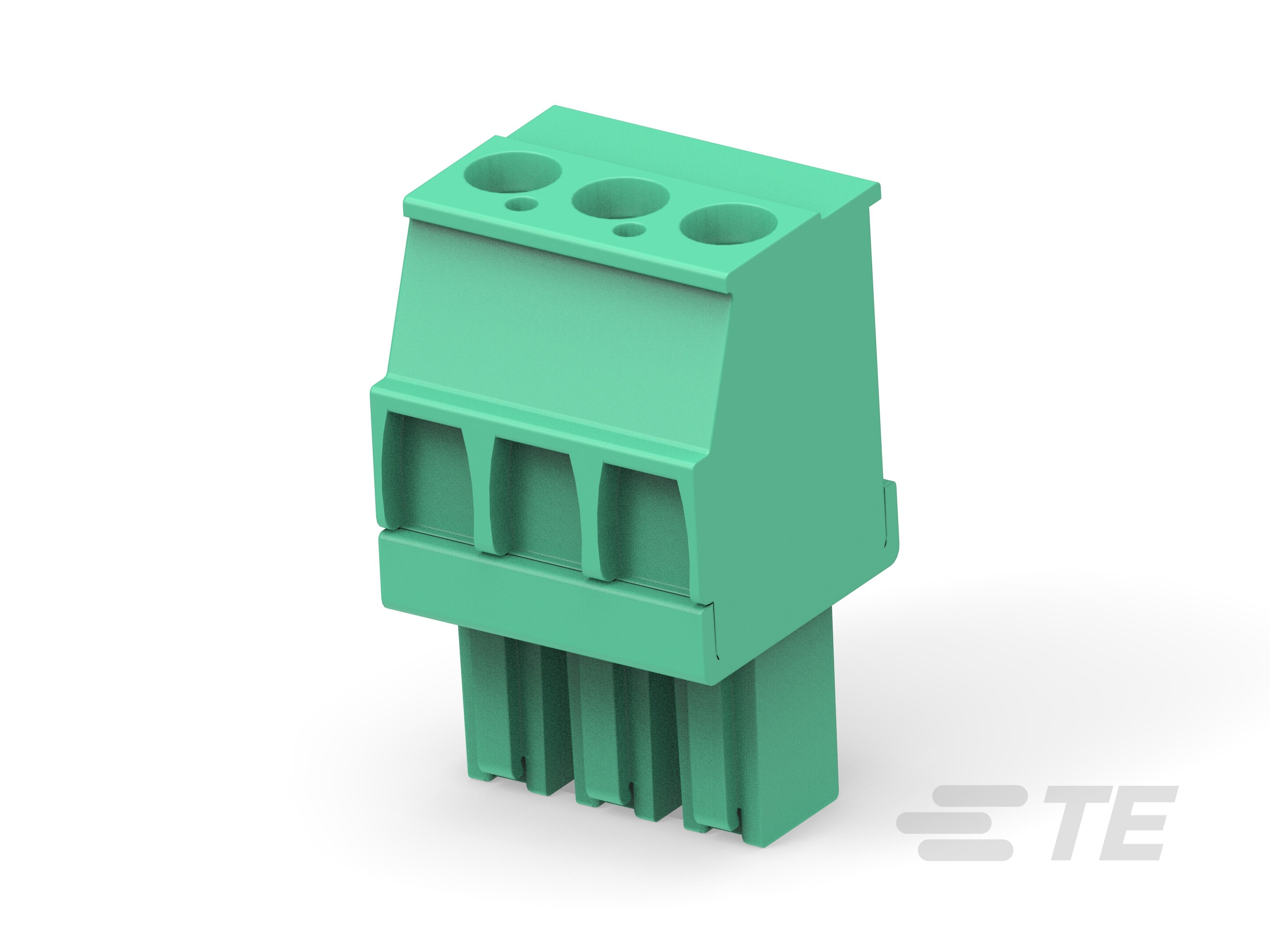

TE Connectivity Raychem Cable Protection 1986374-3	0.756 in	19.2 mm	UL94 V-0	3	Tin	Green	Screw - Rising Cage Clamp	90 °	Plug Female Sockets	Free Hanging (In-Line)	11 A	-40 °C	110 °C	14 AWG	30 AWG	300 V	M2	0.05 mm²	2 mm²	0.15 in	3.81 mm	1	Side Stacking	Phosphor Bronze

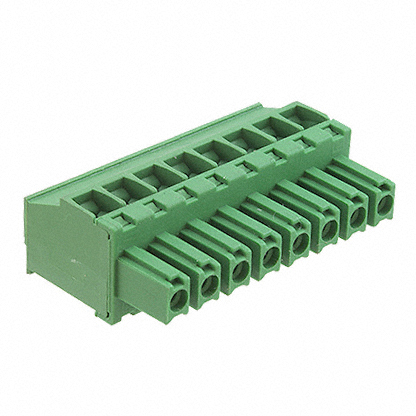

TE Connectivity Raychem Cable Protection 1986374-8	0.756 in	19.2 mm	UL94 V-0	8	Tin	Green	Screw - Rising Cage Clamp	90 °	Plug Female Sockets	Free Hanging (In-Line)	11 A	-40 °C	110 °C	14 AWG	30 AWG	300 V	M2	0.05 mm²	2 mm²	0.15 in	3.81 mm	1	Side Stacking	Phosphor Bronze			8

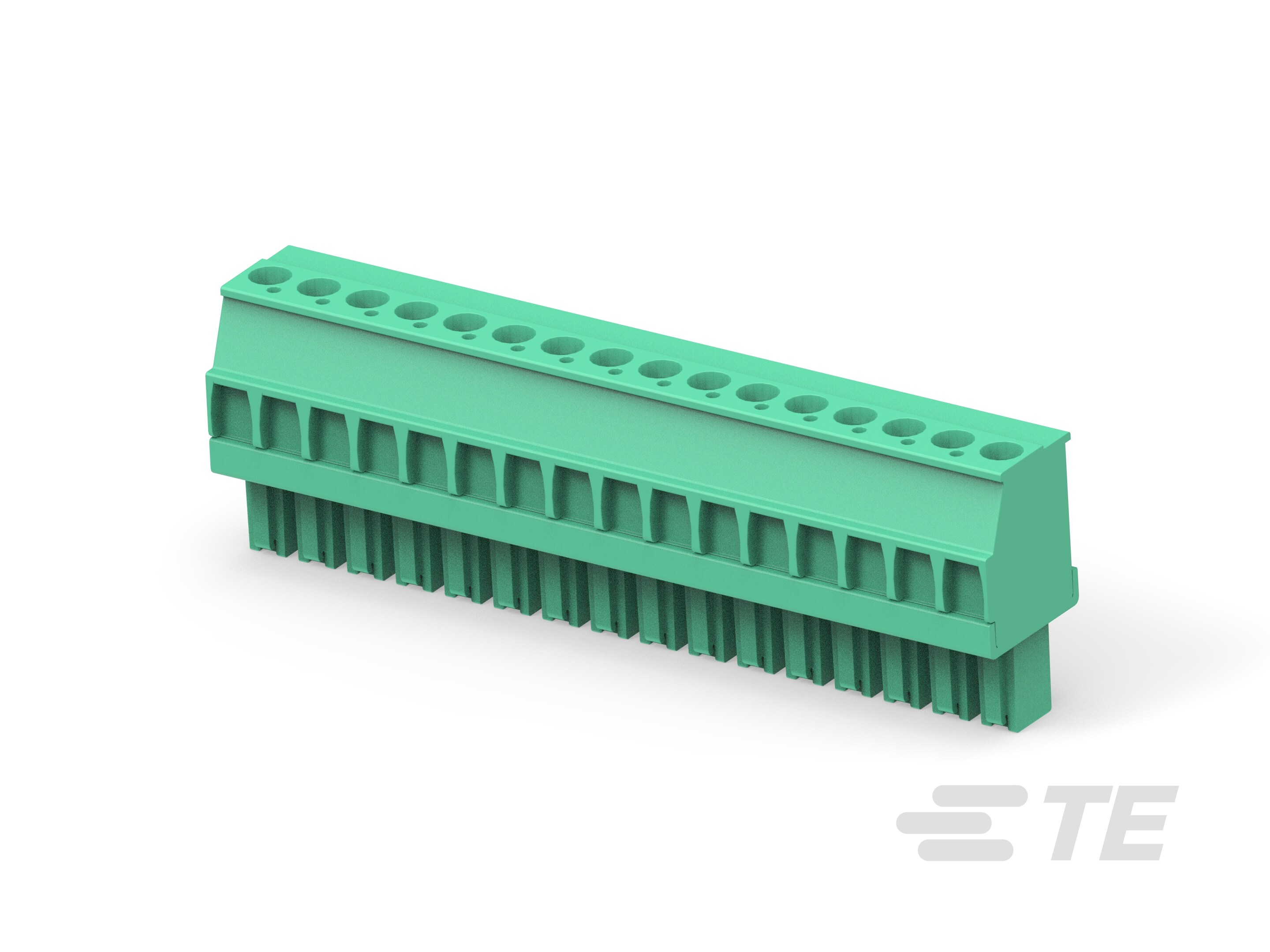

TE Connectivity Raychem Cable Protection 1-1986374-6	0.756 in	19.2 mm	UL94 V-0	16	Tin	Green	Screw - Rising Cage Clamp	90 °	Plug Female Sockets	Free Hanging (In-Line)	11 A	-40 °C	110 °C	14 AWG	30 AWG	300 V	M2	0.05 mm²	2 mm²	0.15 in	3.81 mm	1	Side Stacking	Phosphor Bronze				16
