6EP31230 Series
Manufacturer: Siemens
Beta
⌘K

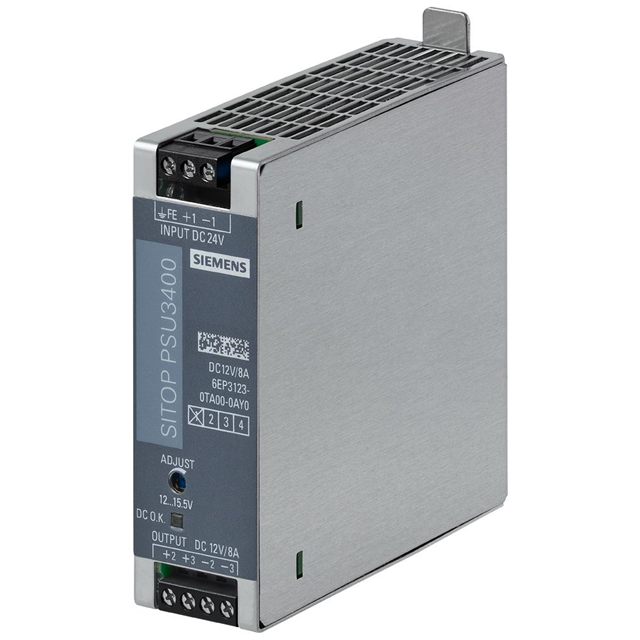

DC/DC DIN RAIL SUPPLY 12V
| Part | Applications | Efficiency | Features | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | DC Voltage - Input (Min) [Min] | Voltage - Output 1 | Standard Number | Approval Agency | Current - Output (Max) [Max] | Input Type | DC Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | Industrial ITE (Commercial) | 90 % | Adjustable Output IP20 | 1 | -25 °C | 70 °C | 14 V | 12 V | 60950-1; UL 508 | CB CE cULus | 8 A | DC | 32 V | 1.26 in | 3.94 in | 3.94 in | 100 mm | 32 mm | 100 mm |
