F871 Series

Manufacturer: KEMET

Catalog

Catalog

SAFETY CAPACITORS 800V 1.8UF 20% LS=27.5MM

...

Part	Tolerance	Voltage Rating - DC	Capacitance	Package / Case	Termination	Lead Spacing	Lead Spacing	Applications	Mounting Type	Voltage Rating - AC	Dielectric Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]
KEMET F871FS185M330Z	20 %	800 V	1.8 µF	Radial	PC Pins	27.5 mm	1.083 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C	1.142 in	29 mm
KEMET F871AE332K330C	10 %	800 V	0.0033 µF	Radial	PC Pins	10 mm	0.394 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			13 mm	4 mm	0.512 "	0.157 "	8 mm	0.315 in
KEMET F871BR154K330R	10 %	800 V	0.15 ÁF	Radial	PC Pins	15 mm	0.591 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			18 mm	13 mm	0.709 in	0.512 "		0.472 in	12 mm
KEMET F871BB472K330L	10 %	800 V	0.0047 µF	Radial	PC Pins	15 mm	0.591 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			18 mm	4 mm	0.709 in	0.157 "	10 mm	0.394 in

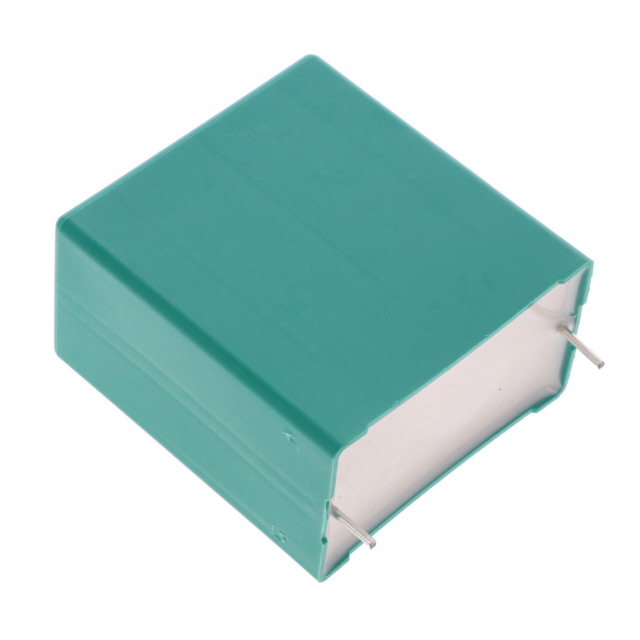

KEMET F871RO565M330Z	20 %		5.6 µF	Radial	PC Pins	37.5 mm	1.476 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			41 mm	24 mm	1.614 in	0.945 "	44 mm	1.732 in
KEMET F871AL472K330A	10 %	800 V	0.0047 µF	Radial	PC Pins	10 mm	0.394 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C	0.295 in		13 mm	9.5 mm	0.512 "	0.374 in	7.5 mm
KEMET F871BS184K330R	10 %	800 V	0.18 µF	Radial	PC Pins	15 mm	0.591 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C	0.63 in	16 mm	18 mm	10 mm	0.709 in	0.394 in
KEMET F871BB103M330L	20 %	800 V	10000 pF	Radial	PC Pins	15 mm	0.591 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			18 mm	4 mm	0.709 in	0.157 "	10 mm	0.394 in
KEMET F871BT104M330L	20 %	800 V	100000 pF	Radial	PC Pins	15 mm	0.591 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			18 mm	9 mm	0.709 in	0.354 in	0.492 in			12.5 mm
KEMET F871BB153K330A	10 %	800 V	15000 pF	Radial	PC Pins	15 mm	0.591 in	EMI RFI Suppression	Through Hole	330 V	Polypropylene (PP) Metallized	X1	-40 C	110 °C			18 mm	4 mm	0.709 in	0.157 "	10 mm	0.394 in
