KHNA60F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 60W
| Part | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage - Isolation | Input Type | Features | Current - Output (Max) [Max] | DC Voltage - Input (Max) [Max] | Number of Outputs | Approval Agency | Efficiency | Standard Number | AC Voltage - Input [Max] | AC Voltage - Input [Min] | DC Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

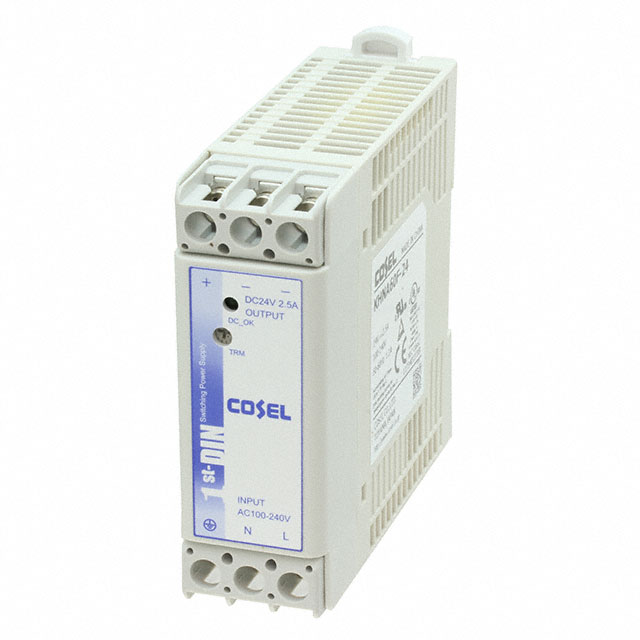

 Cosel USA, Inc. | 60 W | 1.97 in | 4.88 in | 4.77 in | 121.2 mm | 50 mm | 124 mm | 24 V | -20 ░C | 70 °C | ITE (Commercial) | 3000 V | AC or DC | Adjustable Output PFC Remote On/Off Universal Input | 2.5 A | 370 V | 1 | CE cULus cURus TUV | 91 % | 60950-1 | 264 VAC | 85 VAC | 120 V |

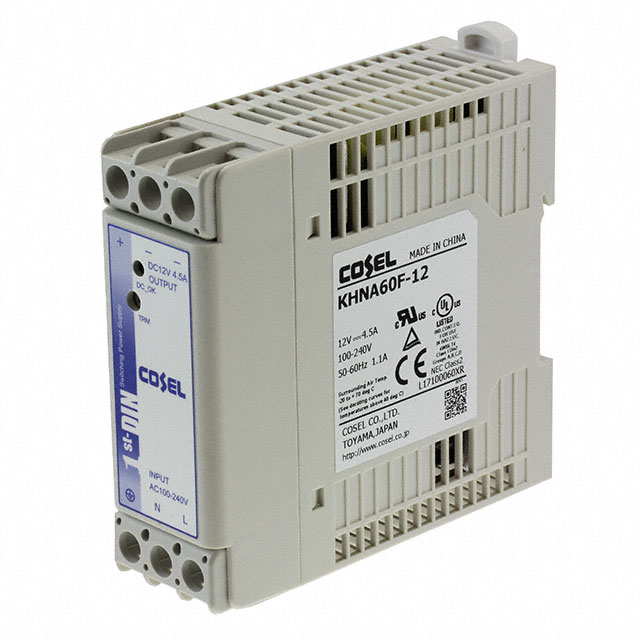

 Cosel USA, Inc. | 60 W | 1.97 in | 4.88 in | 4.77 in | 121.2 mm | 50 mm | 124 mm | 12 V | -20 ░C | 70 °C | ITE (Commercial) | 3000 V | AC or DC | Adjustable Output PFC Remote On/Off Universal Input | 4.5 A | 370 V | 1 | CE cULus cURus TUV | 88 % | 60950-1 | 264 VAC | 85 VAC | 120 V |
