206061 Series

Catalog

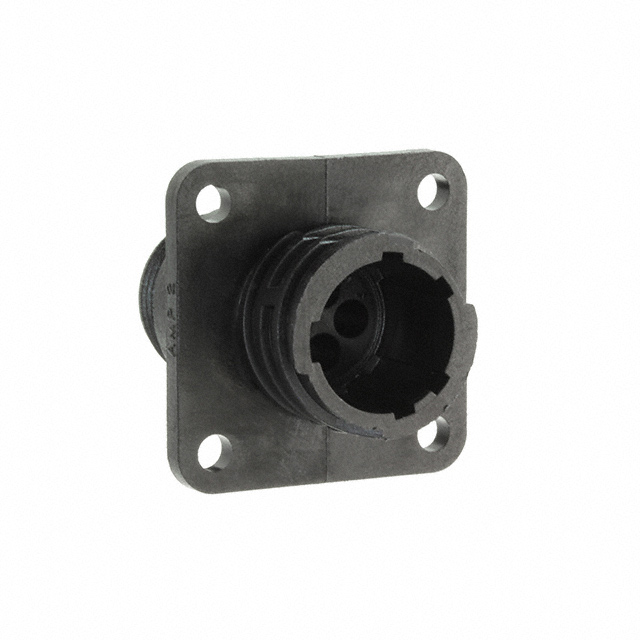

CIRCULAR CONNECTOR HOUSING, CPC SERIES 1, RECEPTACLE, 4, PIN, PANEL MOUNT, 11-4 ROHS COMPLIANT: YES

Part	Contact Shape	Contact Size	Housing Color	Shell Size - Insert	Contact Type	Note	Orientation	Connector Type	Mounting Feature	Shielding	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Type	Insert Material
TE Connectivity Raychem Cable Protection 206061-1	Circular	16	Black	11-4	Crimp	Contacts Not Included	A	Receptacle Housing	Flange	Unshielded	UL94 V-0	4	105 ░C	-55 °C	For Male Pins	Thermoplastic
TE Connectivity Raychem Cable Protection 206061-3	Circular	16	Black	11-4	Crimp	Contacts Not Included	A	Receptacle Housing	Flange	Unshielded	UL94 V-0	4	105 ░C	-55 °C	For Male Pins	Thermoplastic
