72478 Series

Catalog

CONN RCPT 30POS FREE HANGING

Part	Material Flammability Rating	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Mounting Type	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions Loaded	Number of Rows	Termination

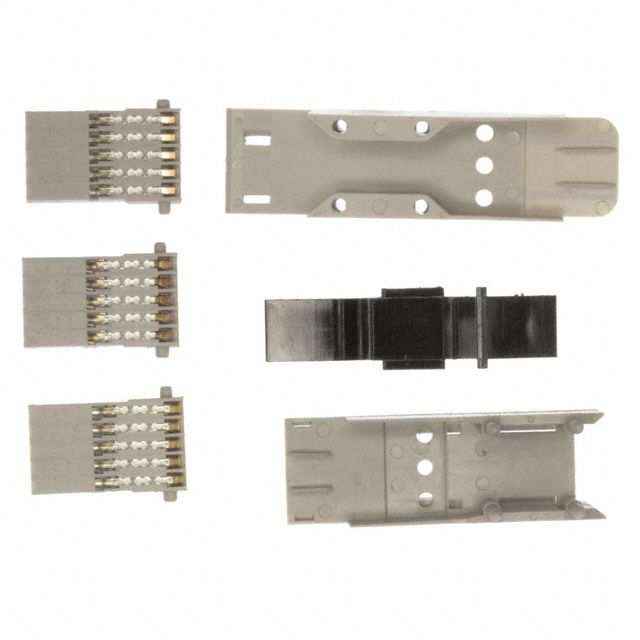

Amphenol ICC (FCI) 72478-1221LF	UL94 V-0	1000 VDC	0.76 Ám	30 Áin	30	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC

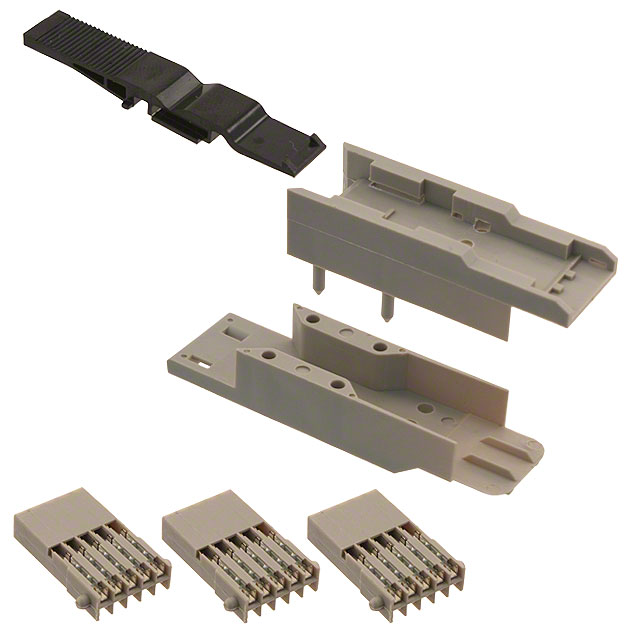

Amphenol ICC (FCI) 72478-1121LF	UL94 V-0	1000 VDC	0.76 Ám	30 Áin	30	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC
Amphenol ICC (FCI) 72478-2121LF	UL94 V-0	1000 VDC	2 µm	78.7 µin	30	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC
Amphenol ICC (FCI) 72478-3111LF	UL94 V-0	1000 VDC	1.3 Ám	51.2 Áin	30		Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC

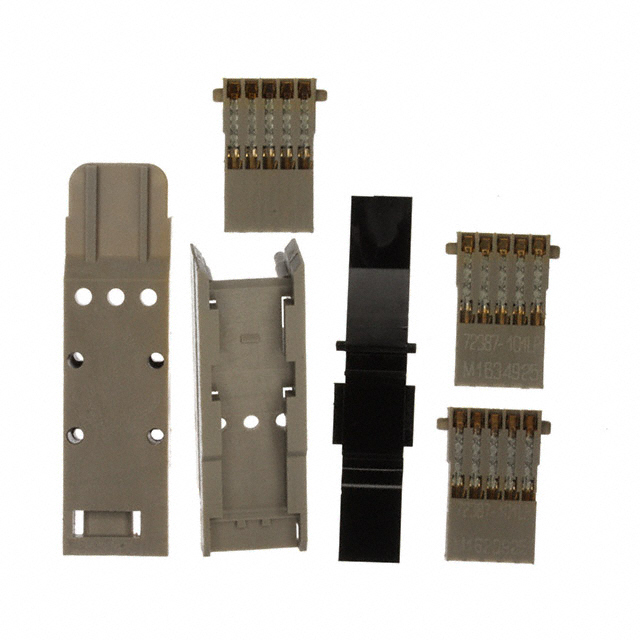

Amphenol ICC (FCI) 72478-1111LF	UL94 V-0	1000 VDC	0.76 Ám	30 Áin	30	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC
Amphenol ICC (FCI) 72478-2111LF	UL94 V-0	1000 VDC	2 µm	78.7 µin	30		Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC
Amphenol ICC (FCI) 72478-2211LF	UL94 V-0	1000 VDC	2 µm	78.7 µin	30	Gray	Free Hanging (In-Line)	Receptacle Female Sockets	Latch Fingers	105 ░C	-55 °C	Gold	All	5	IDC
