1744002 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

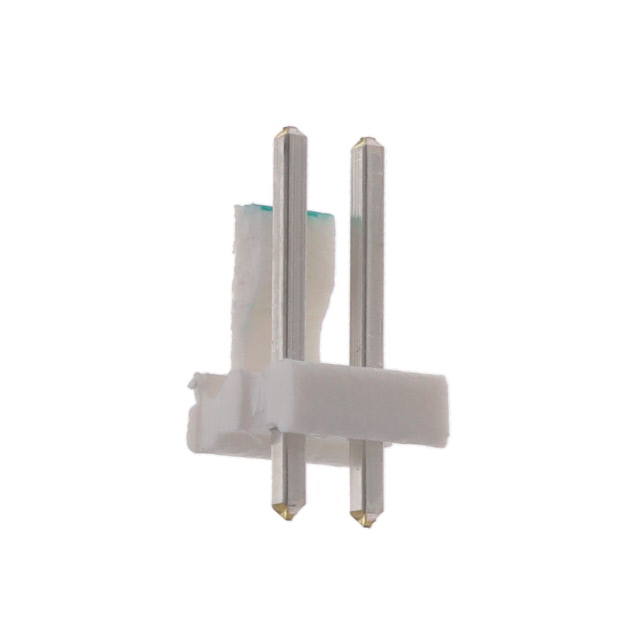

CONN HEADER VERT 2POS 3.96MM
| Part | Applications | Material Flammability Rating | Fastening Type | Insulation Color | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Style | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Termination | Insulation Height [z] | Insulation Height [z] | Contact Shape | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Contact Material | Shrouding | Contact Finish - Post | Contact Type | Voltage Rating | Current Rating (Amps) | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose Industrial | UL94 V-0 | Friction Lock | Natural | 2 | -55 C | 105 ░C | Header | 1 | Board to Cable/Wire | 16.51 mm | 0.65 in | All | Solder | 10.8 mm | 0.425 in | Square | Through Hole | 3.96 mm | 0.156 in | 10.16 mm | 0.4 in | Copper Alloy | Shrouded - 1 Wall | Tin | Male Pin | 600 VAC | Varies by Wire Gauge | 0.125 in | 3.18 mm |
