842-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K

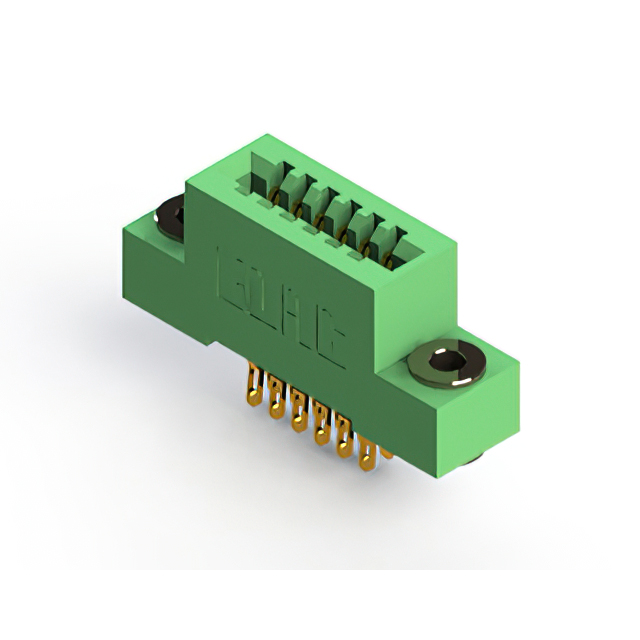

CONN EDGE DUAL FMALE 12POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Gender | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Pitch | Pitch | Termination | Color | Mounting Type | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 2 | 0.25 Ám | 10 Áin | 6 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Wire Wrap | Green | Through Hole | Dual | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 0.25 Ám | 10 Áin | 12 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder | Green | Right Angle Through Hole | Single | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 1 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 0.25 Ám | 10 Áin | 12 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Wire Wrap | Green | Through Hole | Single | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 2 | 0.25 Ám | 10 Áin | 6 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder | Green | Right Angle Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 2 | 0.25 Ám | 10 Áin | 6 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Wire Wrap | Green | Through Hole | Dual | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 2 | 0.25 Ám | 10 Áin | 6 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder Eyelet(s) | Green | Through Hole | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 2 | 0.25 Ám | 10 Áin | 6 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder | Green | Board Edge Straddle Mount | Dual | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 0.25 Ám | 10 Áin | 12 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder | Green | Through Hole | Single | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | Female | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 0.25 Ám | 10 Áin | 12 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder | Green | Through Hole | Single | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Copper Alloy | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 12 | Cantilever | 2 | 0.25 Ám | 10 Áin | 6 | 125 °C | -40 C | Gold | 0.1 " | 2.54 mm | Solder | Green | Board Edge Straddle Mount | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender |
