RBD-50 Series

Catalog

RBD-50-S-00CS2834

Part	Fastening Type	Frequency - Max [Max]	Number of Ports	Voltage Rating	Mounting Type	Body Finish	Center Contact Plating	Center Contact Material	Housing Color	Dielectric Material	Connector Type	Shield Termination	Includes	Contact Termination	Cable Group	Body Material	Mating Cycles	Connector Style	Impedance	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Aerospace, Defense and Marine RBD-50-S-00CS2834

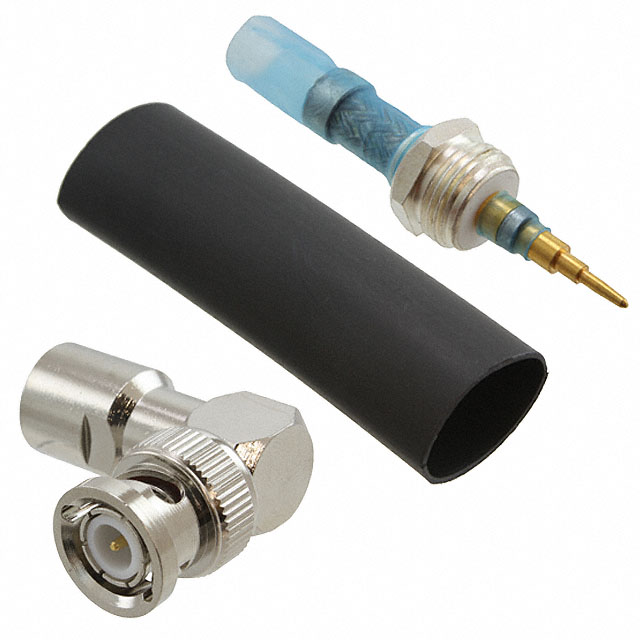

TE Connectivity Aerospace, Defense and Marine RBD-50-M-01	Bayonet Lock	4 GHz	1	500 V	Free Hanging (In-Line) Right Angle	Nickel	Gold	Brass	Silver	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Solder	1 Connector 1 Contact 1 Heat Shrink	Solder	141 142 303 400 RG-58	Brass	500	BNC	50 Ohms	100 °C	-55 °C
TE Connectivity Aerospace, Defense and Marine RBD-50-P-00
TE Connectivity Aerospace, Defense and Marine RBD-50-P-03
TE Connectivity Aerospace, Defense and Marine RBD-50-L-01
TE Connectivity Aerospace, Defense and Marine RBD-50-S-02
TE Connectivity Aerospace, Defense and Marine RBD-50-M-00CS2834
