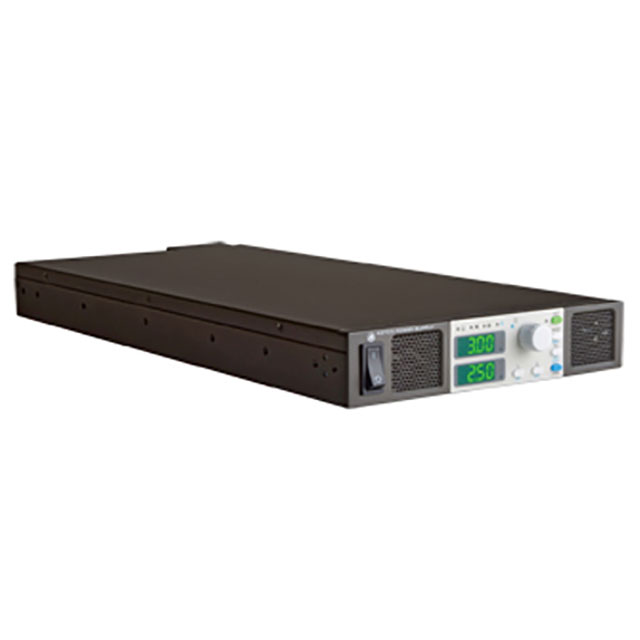

KLN 40 Series

Catalog

POWER SUPPLY 1500W

Part	Current Regulation - Line	Voltage Regulation - Load	Current Regulation - Load	Accuracy - Voltmeter; Ammeter	Voltage Regulation - Line	Ripple	Current - Output [Max]	Current - Output [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output [Max]	Voltage - Output [Min]	Number of Characters	Number of Characters	Display Type	Features	Type	Power (Watts)	Voltage - Supply [Max]	Voltage - Supply [Min]
Kepco and Kepco Power KLN 40-38	0.1% + 5.8mA	0.05 % 6 mV	0.1 % 12.6 mA	0.02% + 3 Counts	0.05 % 6 mV	15 mV	38 A	0 A	16.929 in	18.504 in	430 mm	470 mm	1.732 in	44 mm	40 V	0 VDC	2	4	Digital	Programmable RS-485	Rack Mount (AC to DC)	1500 W	240 VAC	100 VAC
Kepco and Kepco Power KLN 40-19	0.1% + 3.9mA	0.05 % 6 mV	0.1 % 8.8 mA	0.02% + 3 Counts	0.05 % 6 mV	10 mV rms	19 A	0 A	8.465 in	18.504 in	215 mm	470 mm	1.732 in	44 mm	40 V	0 VDC	2	4	Digital	Programmable RS-485	Rack Mount (AC to DC)	750 W	240 VAC	100 VAC
