M13340 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

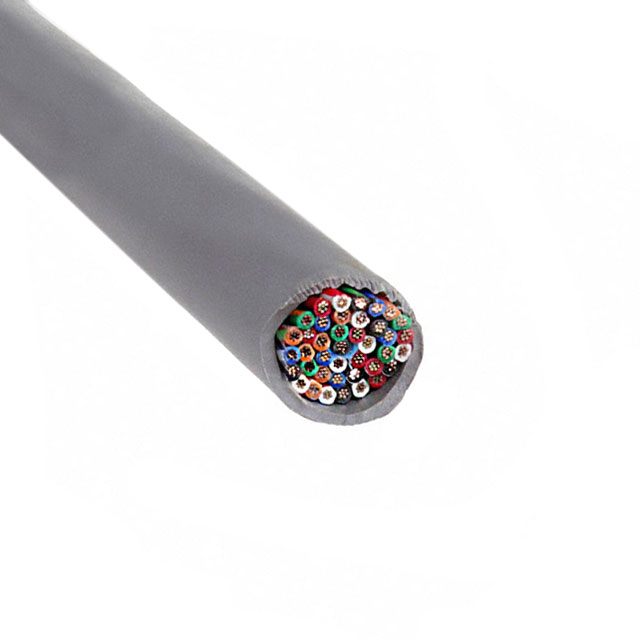

CABLE 40COND 22AWG SLATE 100'
| Part | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length [x] | Length [x] | Voltage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 80 °C | -20 ░C | Copper Tinned | UL Style 2576 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 22 AWG | Slate | 0.445 in | 11.3 mm | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 300 VDC | 40 | 1.016 mm | 0.04 in | ||
 ALPHA WIRE | Multi-Conductor | 80 °C | -20 ░C | Copper Tinned | UL Style 2576 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 22 AWG | Slate | 0.445 in | 11.3 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | 40 | 1.016 mm | 0.04 in | 304.8 m | 1000 ft |
