KSA1M4 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Ingress Protection	Operating Force	Actuator Orientation	Termination Style	Mechanical Life	Outline [x]	Outline [y]	Illumination	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Actuator Type	Features	Contact Rating @ Voltage	Circuit	Actuator Height off PCB, Vertical [z]
Littelfuse/Commercial Vehicle Products KSA1M411LFT	IP60	300 gf	Top Actuated	PC Pin	100000 Cycles	7.4 mm	7.4 mm	Non-Illuminated	0.6 mm	90 °C	-40 °C	Through Hole	Off-Mom	Standard	Grounding Pin	0.05 A	SPST-NO	4.7 mm

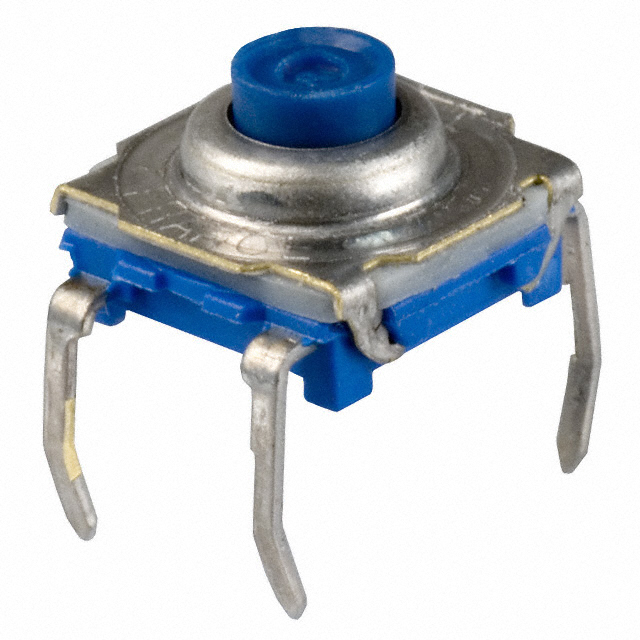

Littelfuse/Commercial Vehicle Products KSA1M411	IP60	300 gf	Top Actuated	PC Pin	100000 Cycles	7.4 mm	7.4 mm	Non-Illuminated	0.6 mm	90 °C	-40 °C	Through Hole	Off-Mom	Standard	Grounding Pin	0.05 A	SPST-NO	4.7 mm
Littelfuse/Commercial Vehicle Products KSA1M411 LFTR	IP60	300 gf	Top Actuated	PC Pin	100000 Cycles	7.4 mm	7.4 mm	Non-Illuminated	0.6 mm	85 °C	-40 °C	Through Hole	Off-Mom	Standard	Grounding Pin	0.05 A	SPST-NO	4.7 mm
Littelfuse/Commercial Vehicle Products KSA1M431LFT	IP60	300 gf	Top Actuated	PC Pin	100000 Cycles	7.4 mm	7.4 mm	Non-Illuminated	0.6 mm	125 °C	-40 °C	Through Hole	Off-Mom	Standard	Grounding Pin	0.01 A 32 VDC	SPST-NO	4.7 mm
