MRK403 Series

Catalog

HALF-INCH DIAMETER PROCESS SEALED ROTARY

Part	Panel Cutout Dimensions [diameter]	Depth Behind Panel [z]	Actuator Length [x]	Index Stops	Number of Decks [custom]	Current Rating (Amps)	Number of Positions [Min]	Number of Positions [Max]	Circuit per Deck	Contact Timing	Actuator Type	Features	Contact Material	Termination Style	Angle of Throw	Voltage Rating - AC	Contact Finish	Mounting Type	Voltage Rating - DC
NKK Switches MRK403-BC	0.25 in	10.1 mm	14.3 mm	Adjustable	1	0.4 VA	2	3	4P3T	Non-Shorting (BBM)	Knob	Process Sealed	Phosphor Bronze	PC Pin	30 °	28 V	Gold	Panel Mount Through Hole	28 V

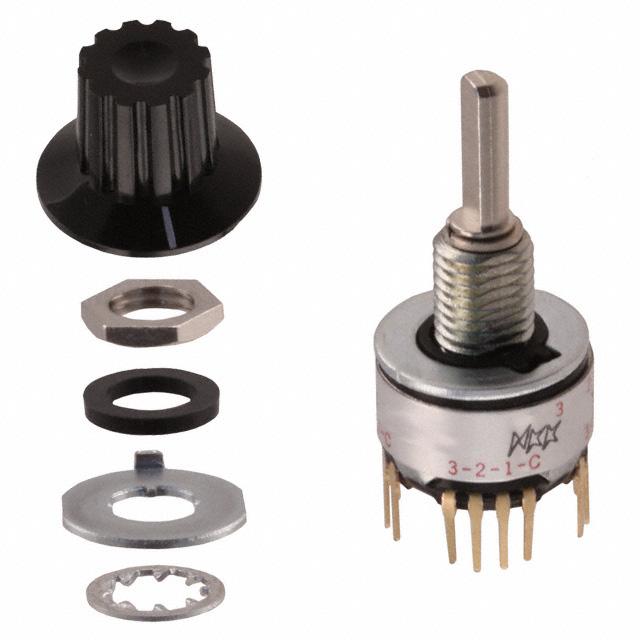

NKK Switches MRK403-A	0.25 in	10.1 mm	13 mm	Adjustable	1	0.4 VA	2	3	4P3T	Non-Shorting (BBM)	Knob	Process Sealed	Phosphor Bronze	PC Pin	30 °	28 V	Gold	Panel Mount Through Hole	28 V

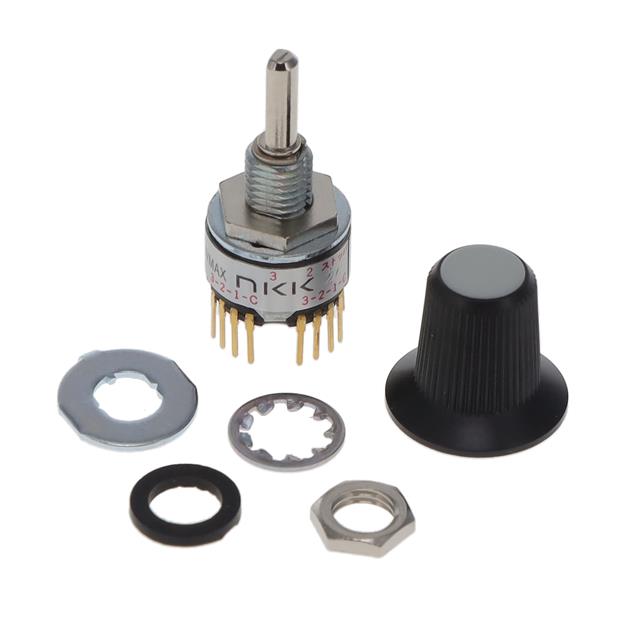

NKK Switches MRK403-BB	0.25 in	10.1 mm	14.3 mm	Adjustable	1	0.4 VA	2	3	4P3T	Non-Shorting (BBM)	Knob	Process Sealed	Phosphor Bronze	PC Pin	30 °	28 V	Gold	Panel Mount Through Hole	28 V
