841349 Series

Catalog

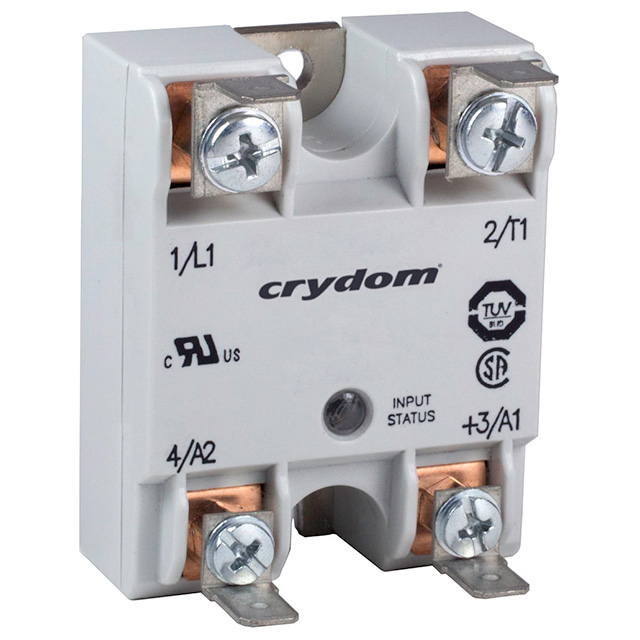

SSR RELAY SPST-NO 25A 24-280V

Part	Load Current	Output Type	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case
Sensata-Crydom 84134914	25 A	AC	Chassis Mount	CE CSA cURus TUV	80 °C	-40 C	0.187 in 0.25 in	Quick Connect	3 V	32 VDC	24 V	280 V	Hockey Puck
Sensata-Crydom 84134915	25 A	AC	Chassis Mount	CE CSA cURus TUV	80 °C	-40 C	0.187 in 0.25 in	Quick Connect	90 VAC	280 VAC/DC	24 V	280 V	Hockey Puck
Sensata-Crydom 84134902	10 A	AC	Chassis Mount	CE CSA cURus TUV	80 °C	-40 C		Screw Terminal	18 VAC/DC	36 VAC	24 V	280 V	Hockey Puck
Sensata-Crydom 84134907	10 A	AC	Chassis Mount	CE CSA cURus TUV	80 °C	-40 C		Quick Connect - 0.250" (6.3mm)	3 V	32 VDC	24 V	280 V	Hockey Puck
Sensata-Crydom 84134912	25 A	AC	Chassis Mount	CE CSA cURus TUV	80 °C	-40 C		Screw Terminal	18 VAC/DC	36 VAC	24 V	280 V	Hockey Puck
Sensata-Crydom 84134909	10 A	AC	Chassis Mount	CE CSA cURus TUV	80 °C	-40 C		Quick Connect - 0.250" (6.3mm)	90 VAC	280 VAC/DC	24 V	280 V	Hockey Puck
