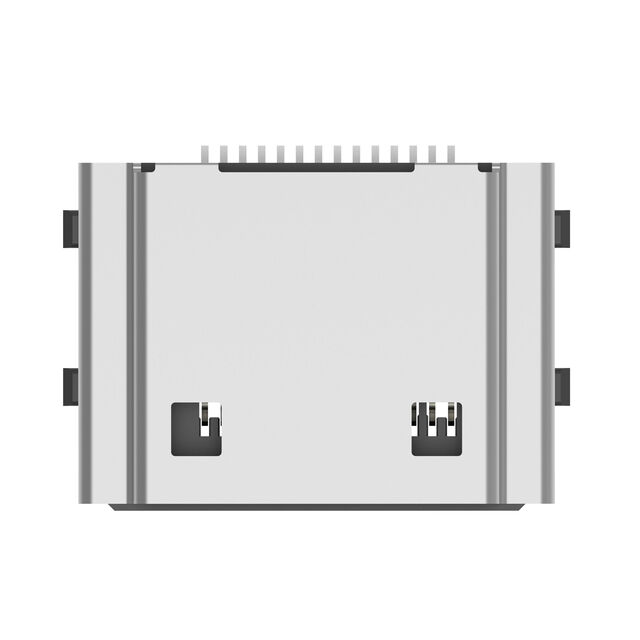

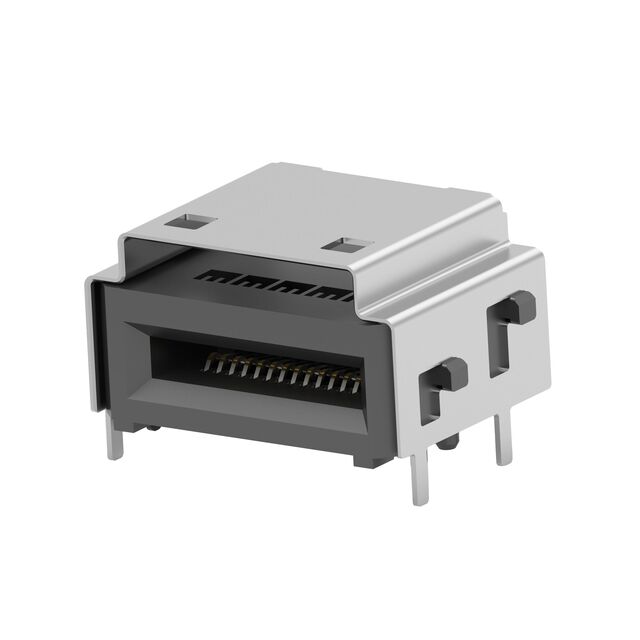

2345808 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
28RECEPT ASSY, RA, 28 POS, SLIVE
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions/Bay/Row [custom] | Color | Gender | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions | Material - Insulation | Card Type | Read Out | Contact Finish | Card Thickness | Card Thickness | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Surface Mount Right Angle | 0.76 Ám | 30 Áin | 2 | Copper Alloy | 85 °C | -55 °C | Solder | 28 | Black | Female | 2 | 0.6 mm | 0.024 in | 28 | Liquid Crystal Polymer (LCP) | Non Specified - Dual Edge | Dual | Gold | 0.062 in | 1.57 mm | Board Guide Pick and Place Solder Retention | |
 TE Connectivity Raychem Cable Protection | Surface Mount Right Angle | 0.76 Ám | 30 Áin | Copper Alloy | 85 °C | -55 °C | Solder | Female | 2 | 0.6 mm | 0.024 in | 28 | Non Specified - Dual Edge | Dual | Gold | 0.062 in | 1.57 mm | Board Guide Pick and Place Solder Retention | |||||
 TE Connectivity Raychem Cable Protection | Surface Mount Right Angle | 2 | Copper Alloy | 85 °C | -55 °C | Solder | 14 | Black | Female | 2 | 0.6 mm | 0.024 in | 28 | Liquid Crystal Polymer (LCP) | Non Specified - Dual Edge | Dual | Gold | 0.062 in | 1.57 mm | Board Guide Pick and Place Solder Retention | Flash |
