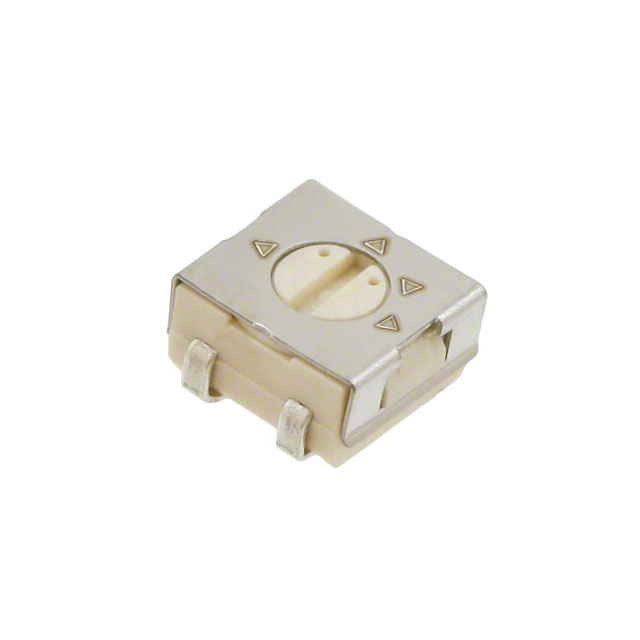

23AR Series

Catalog

TRIMMER 5K OHM 0.25W J LEAD TOP

Part	Mounting Type	Resistance	Adjustment Type	Power (Watts)	Power (Watts) Options	Number of Turns	Tolerance	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Temperature Coefficient	Termination Style	Resistive Material
TT Electronics/BI 23AR5KTR	Surface Mount	5 kOhm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.177 in	Rectangular	0.197 in	100 ppm/°C	J Lead	Cermet
TT Electronics/BI 23AR50KLFTR	Surface Mount	50 kOhm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.177 in	Rectangular	0.197 in	100 ppm/°C	J Lead	Cermet
TT Electronics/BI 23AR1MEGLFTR	Surface Mount	1 MOhm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.18 in	Rectangular	0.2 in	100 ppm/°C	J Lead	Cermet
TT Electronics/BI 23AR20KLFTR	Surface Mount	20 kOhm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.177 in	Rectangular	0.197 in	100 ppm/°C	J Lead	Cermet
TT Electronics/BI 23AR500KLFTR	Surface Mount	500 kOhm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.18 in	Rectangular	0.2 in	100 ppm/°C	J Lead	Cermet
TT Electronics/BI 23AR500LFTR	Surface Mount	500 Ohm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.177 in	Rectangular	0.197 in	100 ppm/°C	J Lead	Cermet

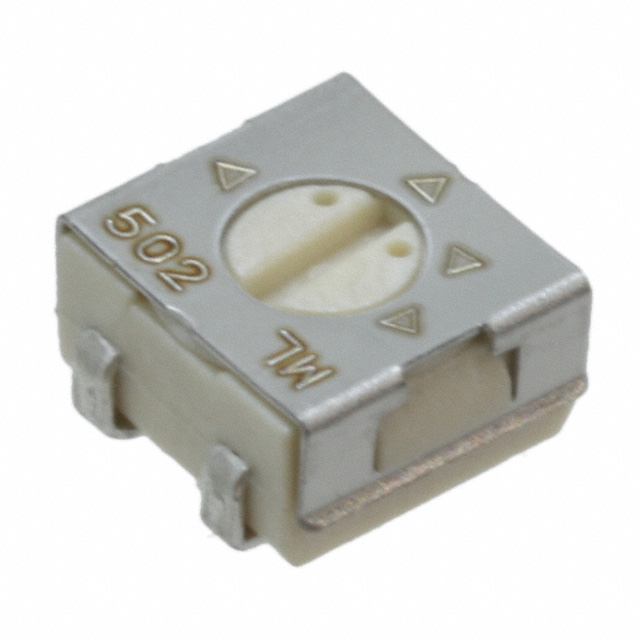

TT Electronics/BI 23AR5KLFTR	Surface Mount	5 kOhm	Top Adjustment	250 mW	1/4W	1 turns	20 %	0.177 in	Rectangular	0.197 in	100 ppm/°C	J Lead	Cermet
