TPS22913 Series

Catalog

5.5-V, 2-A, 60-MΩ LOAD SWITCH WITH OUTPUT DISCHARGE

Part	Supplier Device Package	Switch Type	Fault Protection	Features	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Input Type	Ratio - Input:Output [custom]	Number of Outputs	Mounting Type	Interface	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Rds On (Typ)	Output Configuration	Type	Function	Supplied Contents	Utilized IC / Part	Primary Attributes	Primary Attributes
Texas Instruments TPS22913BYZVT	4-DSBGA (0.88x0.88)	General Purpose	Reverse Current UVLO	Load Discharge Slew Rate Controlled	5.5 V	1.4 V	4-XFBGA DSBGA	Non-Inverting	1:1	1	Surface Mount	On/Off	2 A	85 °C	-40 °C	P-Channel	60 mOhm	High Side

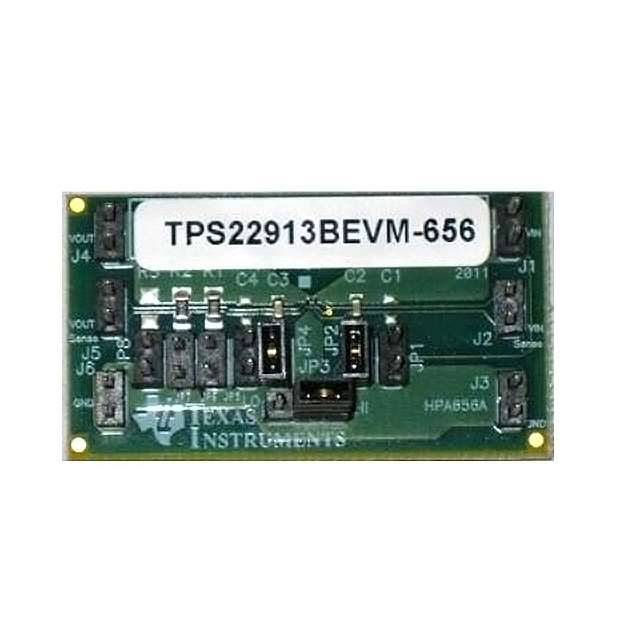

Texas Instruments TPS22913BEVM-656																			Power Management	Power Distribution Switch (Load Switch)	Board(s)	TPS22913B	Controlled Turn-ON Low rON Single Channel	2 A
Texas Instruments TPS22913CYZVR	4-DSBGA (0.88x0.88)	General Purpose	Reverse Current UVLO	Load Discharge Slew Rate Controlled	5.5 V	1.4 V	4-XFBGA DSBGA	Non-Inverting	1:1	1	Surface Mount	On/Off	2 A	85 °C	-40 °C	P-Channel	60 mOhm	High Side
Texas Instruments TPS22913BYZVR	4-DSBGA (0.88x0.88)	General Purpose	Reverse Current UVLO	Load Discharge Slew Rate Controlled	5.5 V	1.4 V	4-XFBGA DSBGA	Non-Inverting	1:1	1	Surface Mount	On/Off	2 A	85 °C	-40 °C	P-Channel	60 mOhm	High Side
Texas Instruments TPS22913CYZVT	4-DSBGA (0.88x0.88)	General Purpose	Reverse Current UVLO	Load Discharge Slew Rate Controlled	5.5 V	1.4 V	4-XFBGA DSBGA	Non-Inverting	1:1	1	Surface Mount	On/Off	2 A	85 °C	-40 °C	P-Channel	60 mOhm	High Side
