11_QLA-01 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

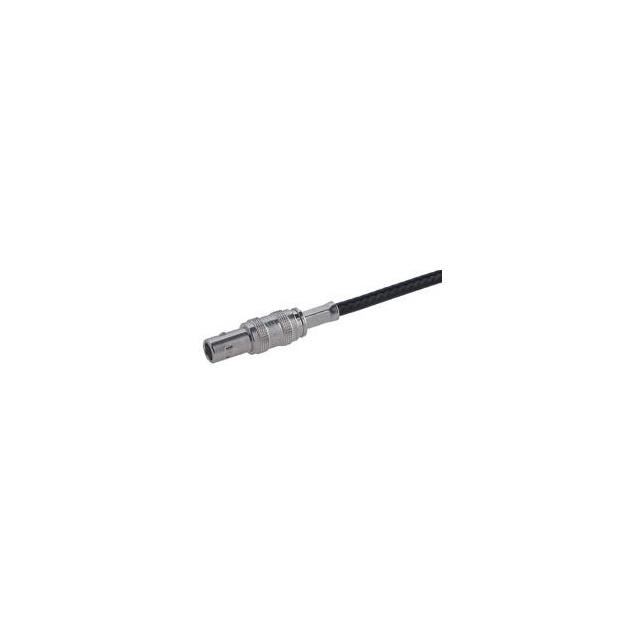

11_QLA-01-2-13/122_NH
| Part | Mating Cycles | Center Contact Plating | Body Material | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Contact Termination | Number of Ports | Connector Type | Impedance | Mounting Type | Connector Style | Shield Termination | Center Contact Material | Housing Color | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 10000 | Gold | Brass | Nickel | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -55 C | 150 °C | 1.4 GHz | Crimp | 1 | Plug Male Pin | 50 Ohms | Free Hanging (In-Line) | QLA | Crimp | Brass | Silver | Push-Pull | |
Huber+Suhner, Inc. | 10000 | Gold | Brass | Nickel | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -55 C | 150 °C | 1.4 GHz | Crimp | 1 | Plug Male Pin | 50 Ohms | Free Hanging (In-Line) | QLA | Crimp | Brass | Silver | Push-Pull | RG-58 |
 Huber+Suhner, Inc. | 10000 | Gold | Brass | Nickel | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -55 C | 150 °C | 1.4 GHz | Crimp | 1 | Plug Male Pin | 50 Ohms | Free Hanging (In-Line) | QLA | Crimp | Brass | Silver | Push-Pull | 223 RG-142 |
 Huber+Suhner, Inc. | 10000 | Gold | Brass | Nickel | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -55 C | 150 °C | 1.4 GHz | Crimp | 1 | Plug Male Pin | 50 Ohms | Free Hanging (In-Line) | QLA | Crimp | Brass | Silver | Push-Pull | RD-316 |
