TL1105 Series

Manufacturer: E-Switch

Catalog

Catalog

TACTILE SWITCHES 6.0X6.15MM R/A 250G

...

Part	Switch Travel	Actuator Material	Mechanical Life	Operating Force	Actuator Length, Right Angle	Mounting Type	Illumination	Outline [y]	Outline [x]	Circuit	Termination Style	Switch Function	Contact Rating @ Voltage	Actuator Type	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Actuator Length, Right Angle [x]	Actuator Height off PCB, Vertical

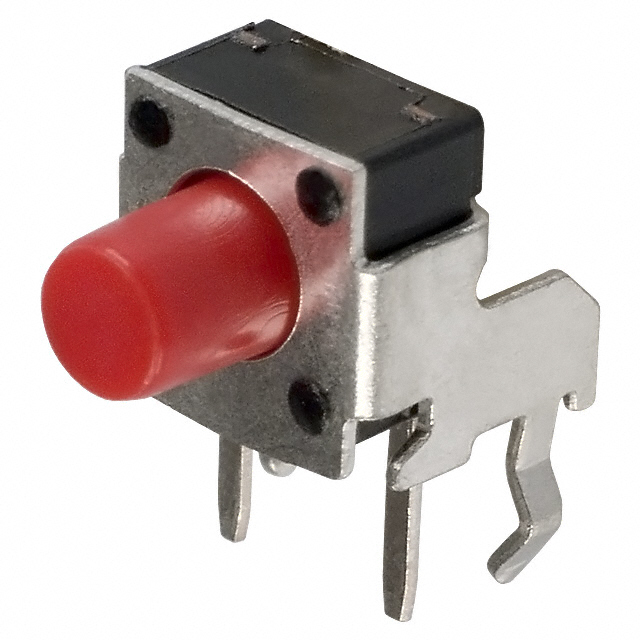

E-Switch TL1105RF250Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	0.25 kgf	6.15 mm	Right Angle Through Hole	Non-Illuminated	6.55 mm	7.1 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Side Actuated	-20 ░C	70 °C
E-Switch TL1105KF100Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	100 gf		Through Hole	Non-Illuminated	6 mm	6 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Top Actuated	-20 ░C	70 °C	13.5 mm

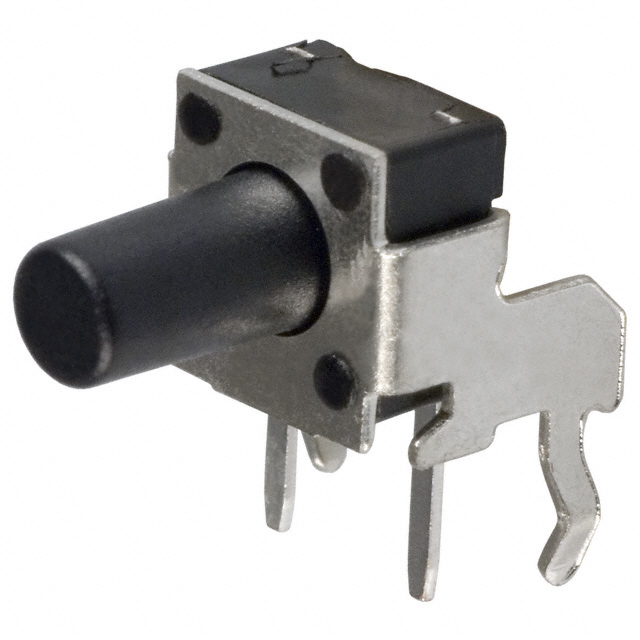

E-Switch TL1105SF160Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	160 gf	8.35 mm	Right Angle Through Hole	Non-Illuminated	6.55 mm	7.1 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Side Actuated	-20 ░C	70 °C

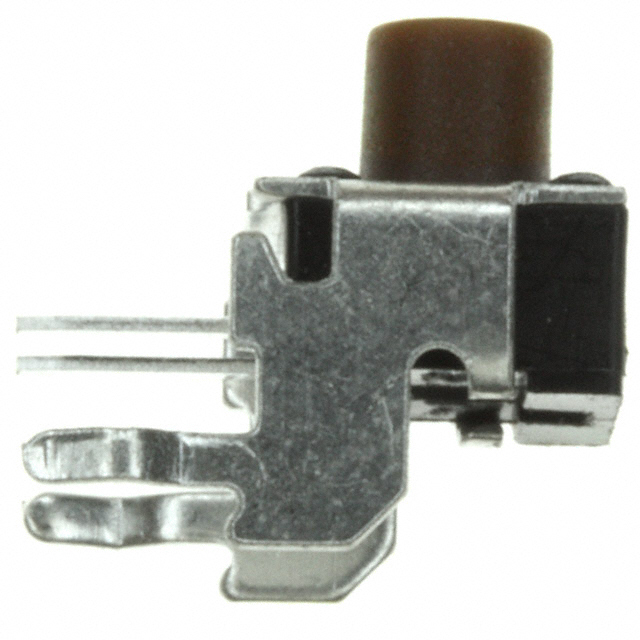

E-Switch TL1105XF100Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	100 gf		Right Angle Through Hole	Non-Illuminated	6.55 mm	7.1 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Side Actuated	-20 ░C	70 °C		5.85 mm

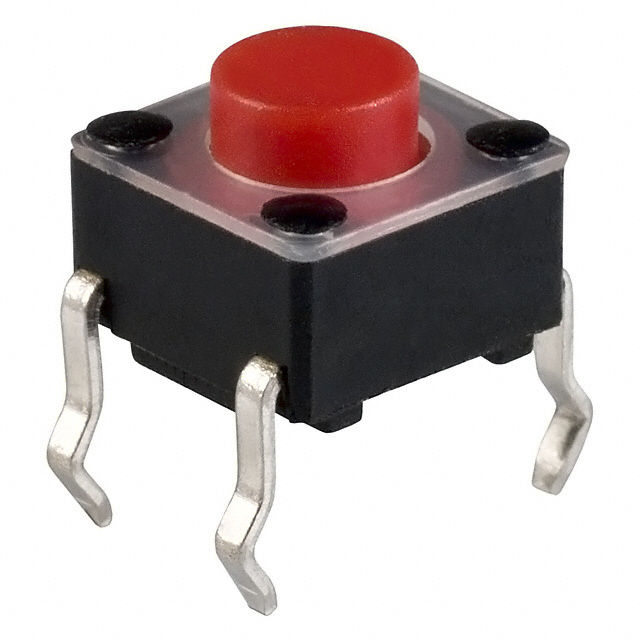

E-Switch TL1105AF250Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	0.25 kgf		Through Hole	Non-Illuminated	6 mm	6 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Top Actuated	-20 ░C	70 °C	5 mm
E-Switch TL1105JAF100Q1RBLK	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	100 gf	12.45 mm	Right Angle Through Hole	Non-Illuminated	6.5 mm	7.2 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Round Button	Side Actuated	-20 ░C	70 °C

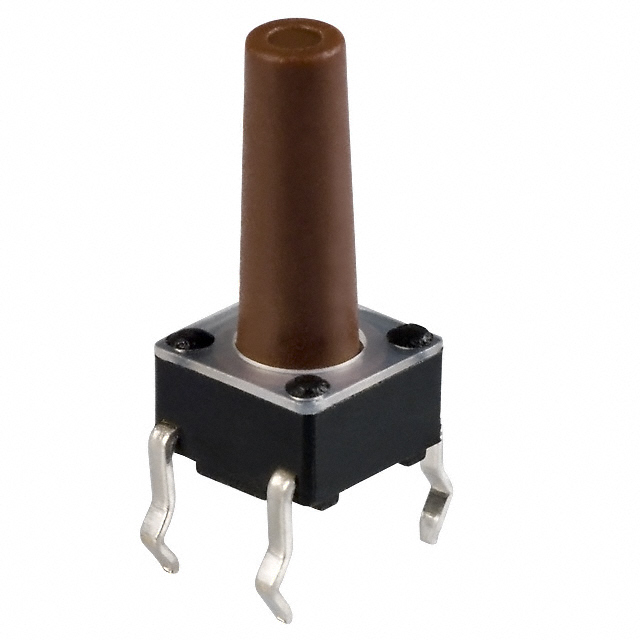

E-Switch TL1105DF100Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	100 gf		Through Hole	Non-Illuminated	6 mm	6 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Top Actuated	-20 ░C	70 °C			13 mm

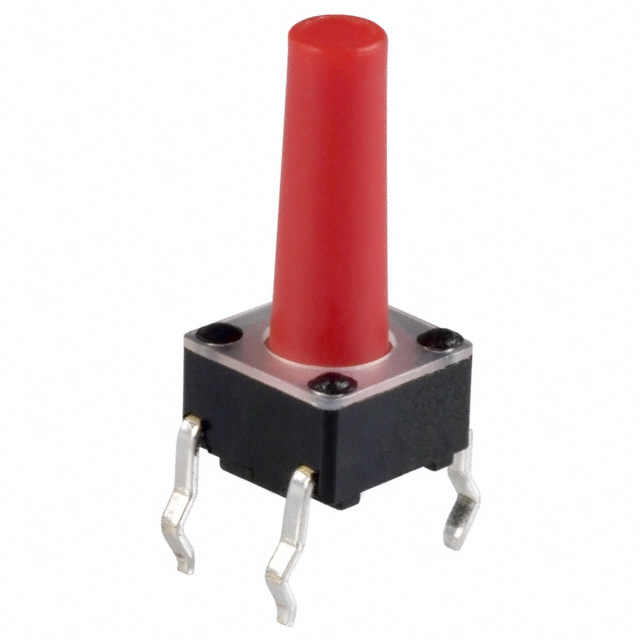

E-Switch TL1105DF250Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	0.25 kgf		Through Hole	Non-Illuminated	6 mm	6 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Top Actuated	-20 ░C	70 °C			13 mm
E-Switch TL1105WF160R				160 gf		Right Angle Through Hole	Non-Illuminated	6.55 mm	7.1 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 50 VDC	Standard	Side Actuated	-20 ░C	70 °C		3.15 mm

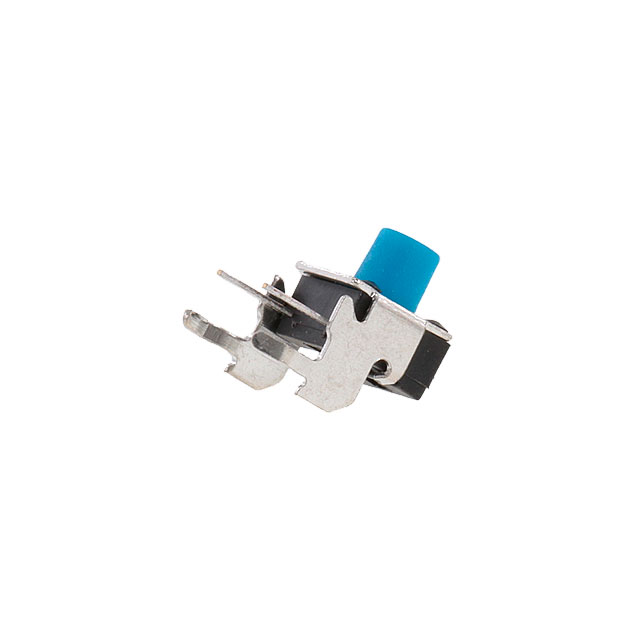

E-Switch TL1105XF160Q	0.25 mm	Polyamide (PA) Nylon	100000 Cycles	160 gf		Right Angle Through Hole	Non-Illuminated	6.55 mm	7.1 mm	SPST-NO	PC Pin	Off-Mom	0.05 A 12 VDC	Standard	Side Actuated	-20 ░C	70 °C		5.85 mm
