ISL54065 Series

Catalog

NEGATIVE SIGNAL SWING, SUB-OHM, DUAL SPDT WITH CLICK AND POP ELIMINATION SINGLE SUPPLY SWITCH WITH ENABLE PIN

Part	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Package / Case	Supplier Device Package	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Mounting Type	On-State Resistance (Max)	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Switch Circuit	Multiplexer/Demultiplexer Circuit	Current - Leakage (IS(off)) (Max)	Charge Injection	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel-to-Channel Matching (ΔRon)	Number of Circuits	Primary Attributes	Primary Attributes	Contents	Function	Secondary Attributes [Min]	Secondary Attributes [Max]	Type	Embedded	Utilized IC / Part	Supplied Contents

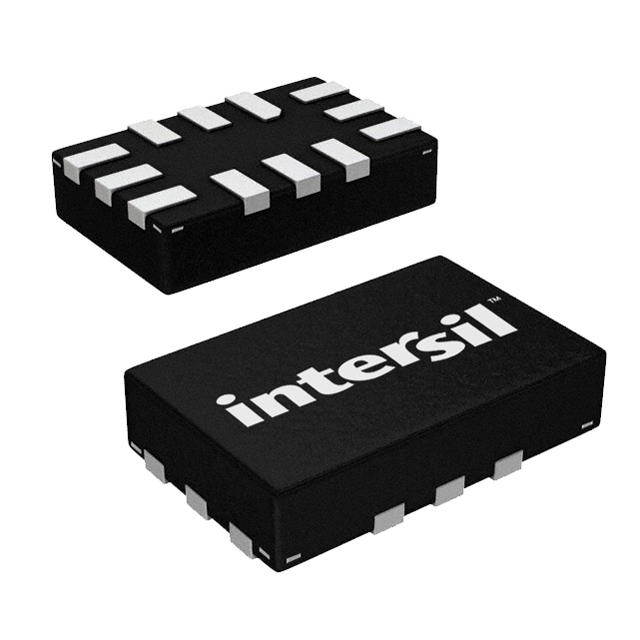

Renesas Electronics Corporation ISL54065IRUZ-T	36 pF	36 pF	-75 dB	12-UFQFN	12-UTQFN (2.2x1.4)	1.8 V	6.5 V	Surface Mount	520 mOhm	85 °C	-40 °C	60 MHz	SPDT	2:1	8.13 nA	170 pC	16 ns	35 ns	10 mOhm	2
Renesas Electronics Corporation ISL54065EVAL1Z																					2 Inputs	SPDT Analog Switch	Board(s)	2:1 Multiplexer	1.8 V	6.5 V	Interface		ISL54065	Board(s)
