DF100 Series

Catalog

DIODE MODULE 800V 100A

Part	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Diode Type	Current - Average Rectified (Io)	Technology	Mounting Type	Voltage - Peak Reverse (Max)	Supplier Device Package

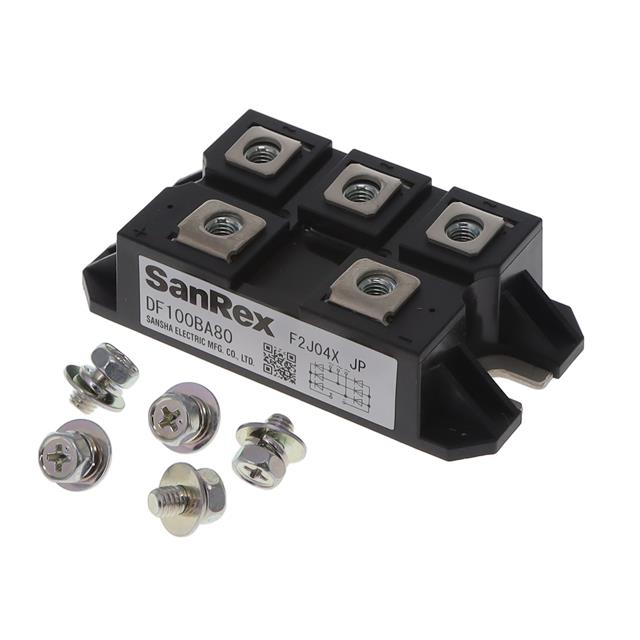

SanRex Corporation DF100BA80	800 V	10 mA	Module	150 °C	-40 °C	1.2 V	Three Phase	100 A	Standard	Chassis Mount
SanRex Corporation DF100LB80	800 V	12 mA	Module	150 °C	-40 °C	1.3 V	Three Phase	100 A	Standard	Chassis Mount

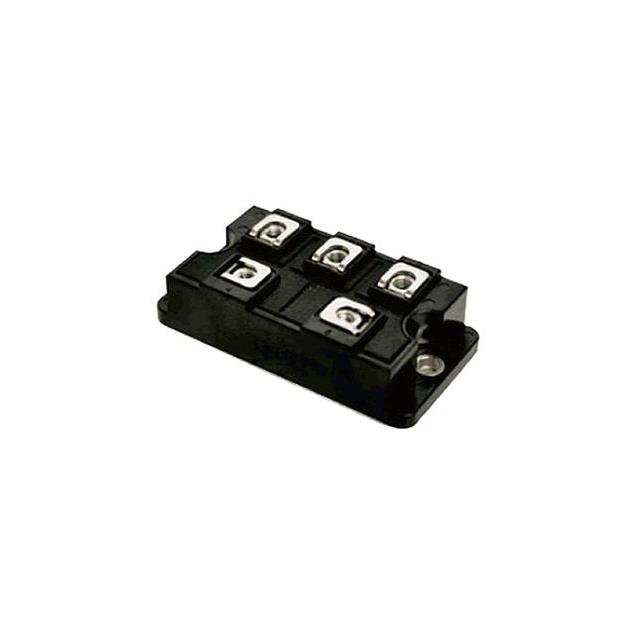

SanRex Corporation DF100LA160		12 mA	Module	150 °C	-40 °C	1.3 V	Three Phase	100 A	Standard	Chassis Mount	1.6 kV

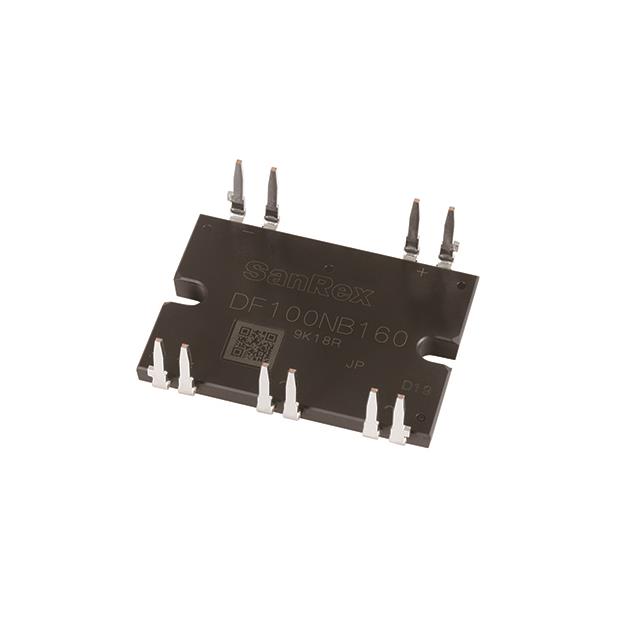

SanRex Corporation DF100NB160		8 mA	5-PowerDIP Module	150 °C	-40 °C	1.35 V	Three Phase	100 A	Standard	Through Hole	1.6 kV	5-DIP
SanRex Corporation DF100AA160		15 mA	Module	150 °C	-40 °C	1.2 V	Three Phase	100 A	Standard	Chassis Mount	1.6 kV
