9039-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

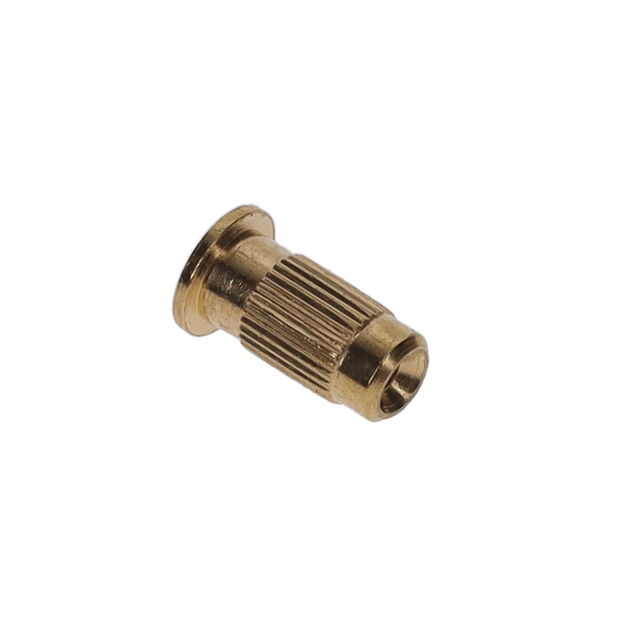

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Tail Type | Contact Finish | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Termination | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.25 Ám | 10 Áin | No Tail | Gold | 0.051 in | 1.3 mm | Press-Fit | 0.167 " | 4.24 mm | 0.075 " | 1.91 mm | 2.54 mm | 0.1 in | Beryllium Copper |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.25 Ám | 10 Áin | No Tail | Gold | 0.051 in | 1.3 mm | Press-Fit | 0.167 " | 4.24 mm | 0.075 " | 1.91 mm | 2.54 mm | 0.1 in | Beryllium Copper |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.76 Ám | 30 Áin | No Tail | Gold | 0.051 in | 1.3 mm | Press-Fit | 0.167 " | 4.24 mm | 0.075 " | 1.91 mm | 2.54 mm | 0.1 in | Beryllium Copper |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.76 Ám | 30 Áin | No Tail | Gold | 0.051 in | 1.3 mm | Press-Fit | 0.167 " | 4.24 mm | 0.075 " | 1.91 mm | 2.54 mm | 0.1 in | Beryllium Copper |
